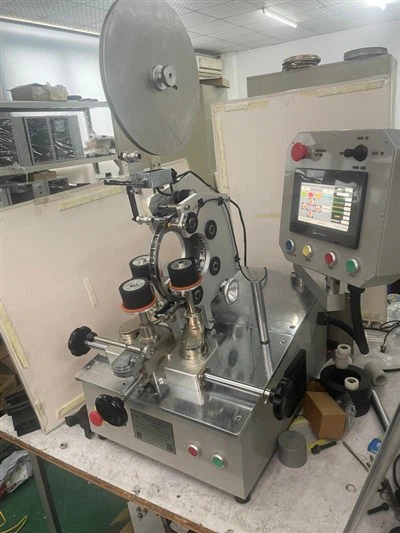

Toroidal Transformer Warpping MachineModel：GW-70T
Tape width：4-8mm
Minimum finish inner diameter：12.5mm
Maximum completion height：50mm
Maximum finish outer diameter：25-80mmAdd to Inquiry
Toroidal Transformer Warpping MachineTAPING HEAD DATA:GW-50T
BUILD UP FACTOR:+11
TAPE WIDTH:6-18MM
MAGAZINE DIAMETER:215MM
FINISHED CORE OD:25-350MMAdd to Inquiry
Toroidal Transformer Wrapping Machine For Small Inner Dia...Model：GW-50T & GW-70T
Control system: PLC+ touchscreen
Motor: servo motor
Speed: 150rpmAdd to Inquiry
PLC Controller Touch Screen Toroidal Tape MachineModel: GW-80T
Tape width:9-25mm
Minimum finish inner diameter:29mm
Maximum completion height:90mm
Maximum finish outer diameter:40-150mm
Max speed:150rpm...Add to Inquiry
Dual Purpose Toroidal Transformer Taping Winding MachineModel: GWY-700S
Appropriate wire diameter:1.0-4.0mm
Core outer diameter:450-1300mm
Core inner diameter:300mm
Core height:330mmAdd to Inquiry
Toroidal Transformer Taping MachineTape width：9-25mm
Minimum finish inner diameter：29mm
Maximum completion height：90mm
Maximum finish outer diameter：40-150mmAdd to Inquiry
Programable Automatic Large Core Coil Taping Winding MachineModel:GWL-500T
Suitable winding bandwidth:10-12-15-20mm
Finally completed outer diameter:80-250mm or 120-320mm (Choose 1 from 2 fixtures)
Minimum finished inner diameter:40mm...Add to Inquiry
Cotton Taping Winding MachineTape size：9-25mm
Wingding speed：150Rpm
CONTROLLER：PLC CONTROL WITH SOFTWARE
SUPPLY VOLTAGES：230 (110 AND 240) VOLT, 50 HZ ACAdd to Inquiry
Magnetic Core Transformer Taping Winding MachineNAME： GWLT-850
Max. final coil. O.D:60-180mm
Min. final coil. I.D:30mm
Max. final coil height:80mm
Tape width:8-10-12-15mm（optional）Add to Inquiry
Automatic Toroidal Inductor And Transformrer Taping Windi...Tape width:5mm/8mm/10mm(Depends onthe width ofshuttle)
Max.windingspeed:300 rpm
Max.finalcoil.O.D:60 mm (Max)
Supply voltage:AC 220V（50Hz）
Memory Capacity:999 step...Add to Inquiry
Multifunctional Transformer Taping MachineTape width:6(8)
Max.winding speed:250 rpm
Max.final coil.O.D:Φ80
Tape spacing:Proportional linkage
Min.final coil.I.D:Φ16
Supply voltage:AC 220V（50Hz）
Max.finalcoil...Add to Inquiry
GW-21T6 High Quality Toroidal Taping Machine For TransformerTape width：5mm/8mm/10mm(Depends on the width of shuttle)
Max.winding speed：300 rpm
Max.final coil.O.D：60 mm (Max)
Memory Capacity：999 steps
Min.final coil.I.D：14mm (Min)...Add to Inquiry
We're well-known as one of the leading toroid taping machine manufacturers and suppliers in China. We warmly welcome you to buy high-grade toroid taping machine made in China here from our factory. All machines are with high quality and competitive price.
