Stator Winding Machine

Our technical engineers have more than 20 years of production research and development experience,
The following produce lines can be customized according to your different requirements, including:



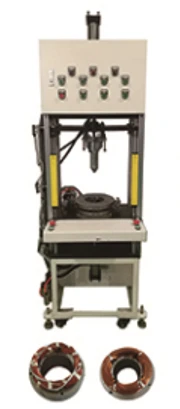

1. Motor Stator Production Process



(1) GW-KM22 Automatic coil winding machine details



Machine number	GW-KM22	Wire Diameter	0.1-1.0mm
Winding RPM	Max 3000	Coil Diameter	Max 320
Power	1.5KVA	Program Memory	Max 99
Machine size	1300*1100*1150mm	Net Weight	300kg



Function：

When winding the machine, it can wind up to 40 coils at the same time, In particular, the wire laying speed can be synchronous or preset according to the size of the copper wire.



Features：

1. This product is programmable and controlled by a micro-computer， with good， durable， stable， safe, and other characteristics.

2. The internal memory system adopts the lastest battery free micro-computer memory device， completely eliminating the shortcomings of the general battery life.

3. The speed of the wire arrangement can be adjusted automatically according to the wire diameter.

4. The speed of the main shaft can be adjusted freely and the max. speed can reach 3200rpm.

5. There are 99 groups of 22 segments or 45 groups of 50 segments of memory function and disconnection self-stop device.

6. A power failure memory device is attached.



(2) GWK-270F insulation paper inserter machine



Name	Small type	Middle type	Big type
Model Number	GWK-269F	GWK-270F	GWK-271F
Stator I.D.（mm）	30-120	30-120	30-120
Stator O.D. （mm）	Max 120	Max 160	Max 190
Stack height（mm）	Max 40	Max 80	Max 120
Number of slots	8-36	8-36	8-36
Power（KVA）	0.75	0.75	1.5
Driving mode	Servo motor	Servo motor	Servo motor
Net weight (kg)	350	450	550
Machine size(mm)	900*600*950	900*600*1100	1100*700*1150



Function：

This machine is specially designed for slot ce paper insertion in medium and small size stators. A procedure is done by the machine automatically except to put on and take off the stator, The complete inserting time for 24 slots stator can be shorten to 10 sec/stator. The production cost will be highly reduced by decreasing the material loss and labor costs.



Features：

1. High insertion speed(about 0.4 sec/slot), labor saving, cost reduction, and stable quality output.

2. Easy adjustment while changing stack height of stator or width of insulating paper

3. Change the tooling design to meet the different shapes of stater slots.



(3)GWK-300SV Servo Coil and Wedge inserting machine

Operation ：	Servo
Motor :	3 PHASE 3KW
Net Weight：	800kg
Dimension:	1500*800*1650 mm
Statorl.D.:	30-100mm
StatorO.D:	Max 160mm
Stack height：	Max 40mm
Number of slots：	8-36



Function：

Wedge is inserted automatically in accordance with the stack height of the stator, and the coil can be inserted automatically with one pass in compliance with the specification of winding by the transfer tool. it can enhance insertion efficiency highly, and reduce the production cost.



Features：

1. High-speed automatic insertion, labor-saving. cost reduction and stable quality output.

2. Easy and quick to change tool according to the stack height of the stator.

3. Change different tools to meet different kinds of stators.

4. Adopt the private clothing control, the setting is convenient.

5..Especially suitable for fans, cigarette machines, and other small-thickness products, the production can be higher.



2. Motor Rotor Production Process



3. The Hanging Fan Winding Machine Production Process



In addition, we can also provide related machine accessories















We're well-known as one of the leading stator winding machine manufacturers and suppliers in China. We warmly welcome you to buy high-grade stator winding machine made in China here from our factory. All machines are with high quality and competitive price.
