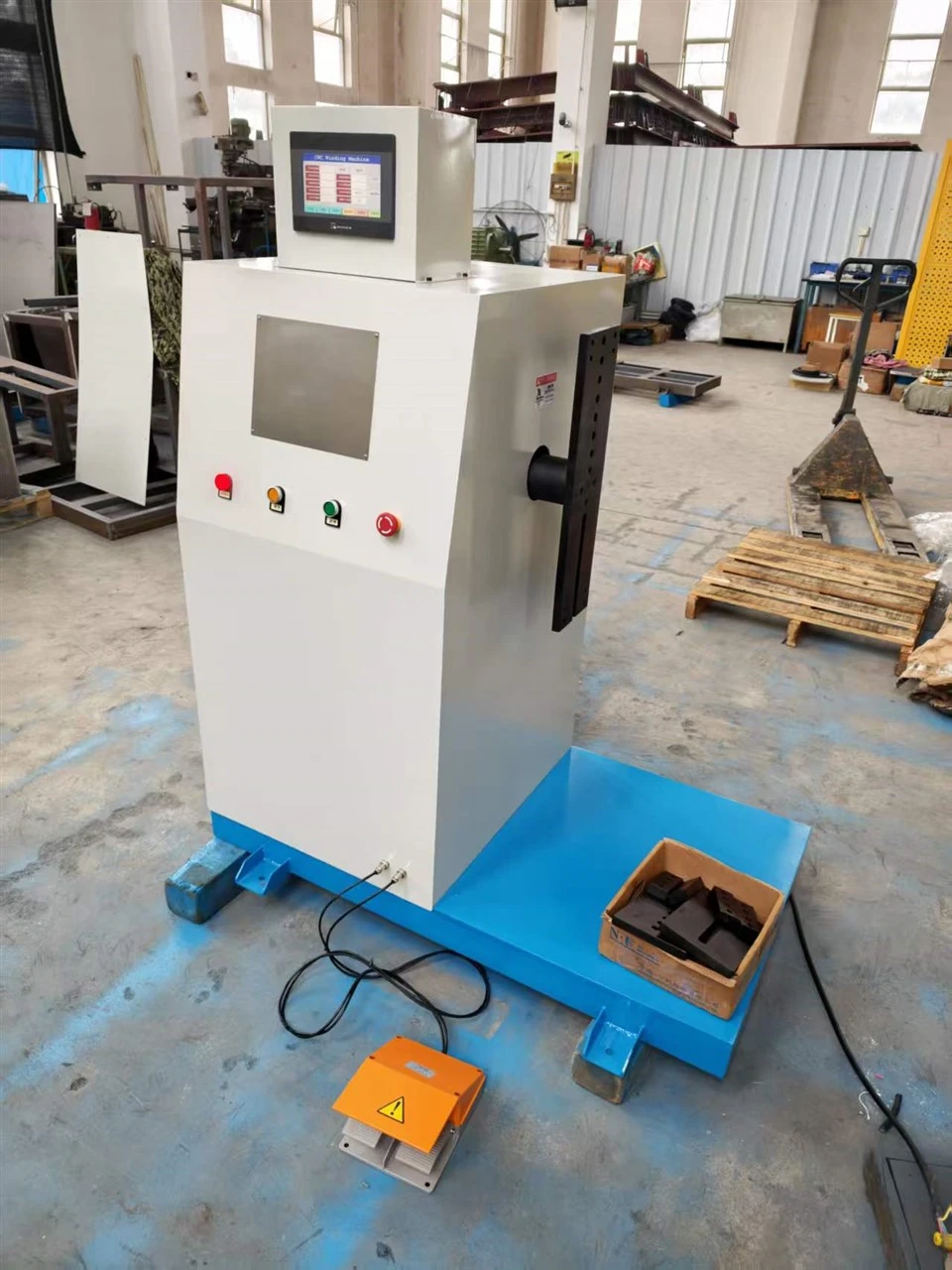

CNC Motor Winding Machine

Model：GW-CNCM01
Machine Body&Frame：Self-manufactured by factory
Reduction Mechanism：Gear Reducer
Mold Fixing Plate：Custom Adjustable Type
Spindle Brake：Electromagnetic Type FBL-12

Send Inquiry

Download

Description

1. Schematic Diagram of Equipment Structure

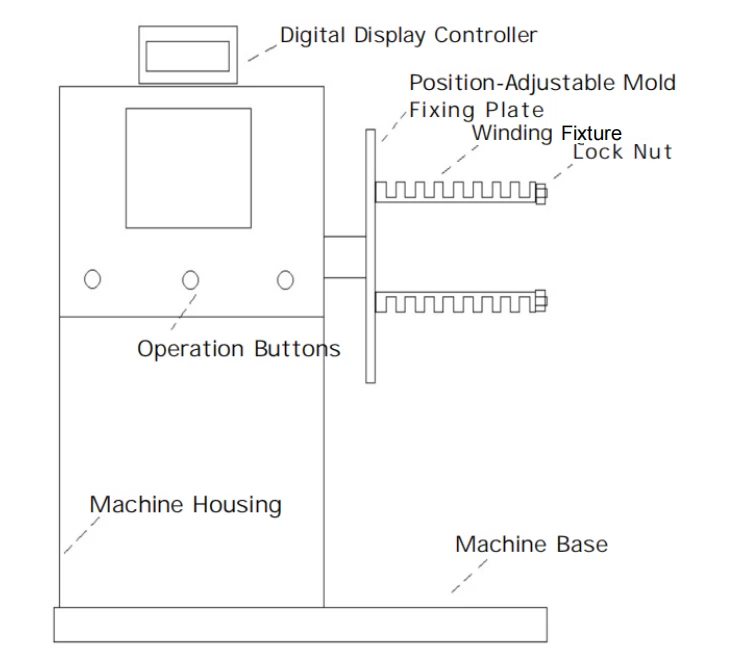

product-733-666

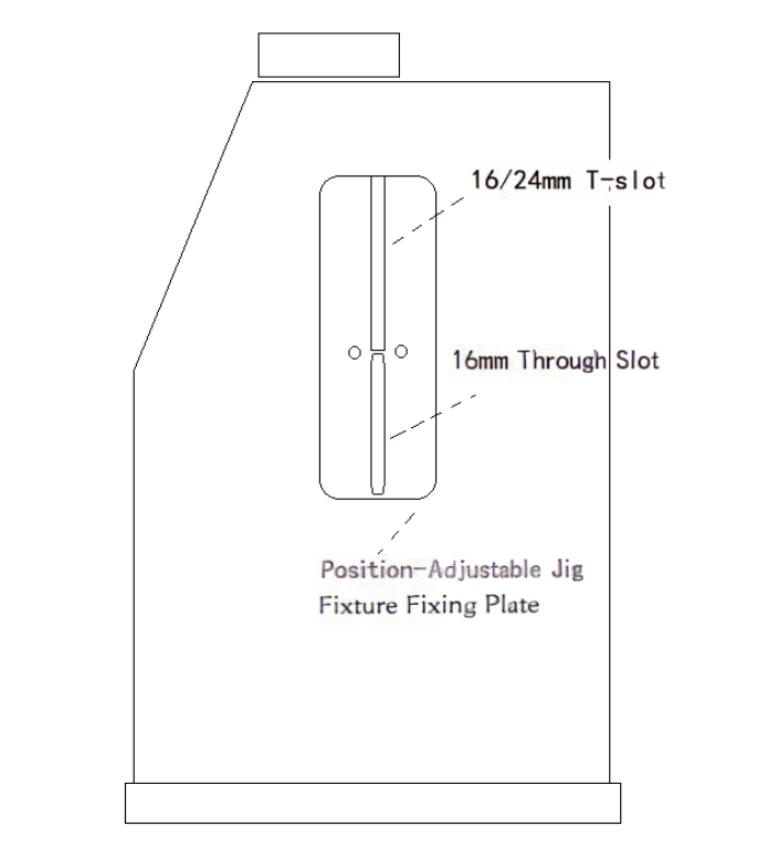

product-780-855

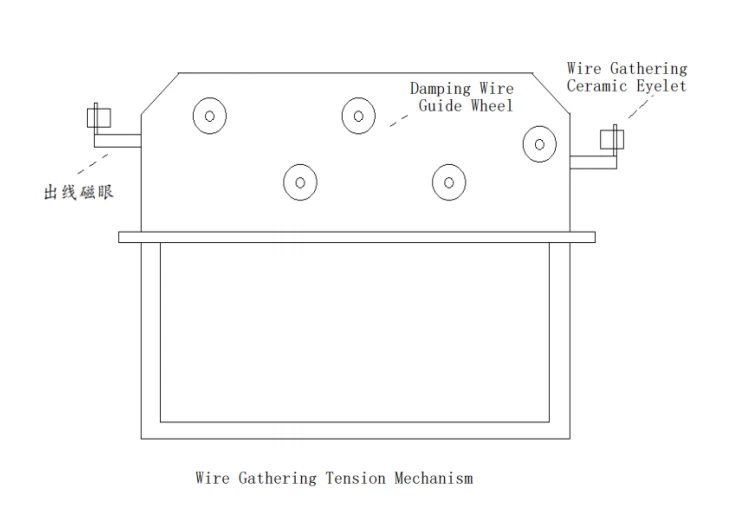

product-744-515

2. Main Functions and Parameters of the Machine

Multi-function Counting Control Circuit
Low-noise Maintenance-free Reduction Mechanism
Capable of Storing and Setting 99 Sets of Winding Processes
Automatic Direction Judgement with Forward/Reverse Bidirectional Counting
Precise and Lockable Stopping Position
Frequency Conversion Control for Spindle High-torque Motor
Wide Speed Regulation Range with Stable Torque
Slow Start and Slow Stop Functions
Winding Width: 400mm
Bobbin Diameter: 1400mm
Maximum Rotation Speed: 160 rpm
Counting Resolution: 1/0.1 Revolution
Power Supply Voltage: 380V 50Hz
Motor Power: 2.2KW (AC Reduction)

3.Equipment Component Configuration

Part Name	Brand&Specification	Qty.	Origin
Machine Body&Frame	Self-manufactured by factory	1 set	Shanghai
Reduction Mechanism	Gear Reducer	1 set	Hangzhou
Mold Fixing Plate	Custom Adjustable Type	1 set	Shanghai
Spindle Brake	Electromagnetic Type FBL-12	1 set	Shanghai
Winding Machine Controller	MingSu Version,Shenzhen	1 set	Shenzhen
Spindle Sensor	Omron Photoelectric Type	1 set	Japan
Spindle Motor	OPG Integrated Gear Reduction Type	1 set	Yantai
Frequency Converter	Delta VFD-EL	1 set	Taiwan,China

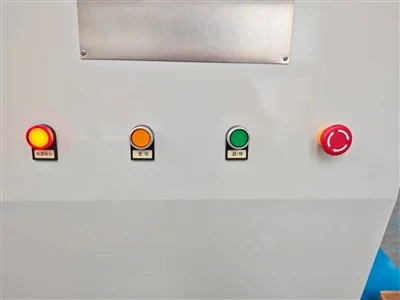

Operation Buttons	Schneider XB-2	1 set	Beijing
Accessories	1 Foot Switch	-	-

4.Main Function Description

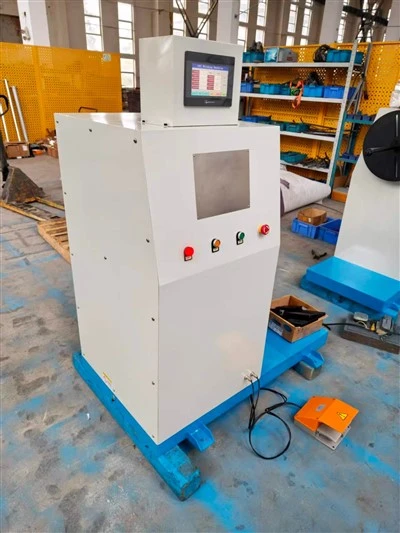

4.1 Machine Body & Frame Components

(1) The equipment base plate is made of 16mm steel plate with widened design. Reinforcing beams are adopted to support all stress-bearing areas, and anchor bolt fixing holes are reserved on the base frame.

(2) The machine housing is fabricated from 2mm cold-rolled steel sheet. All welding joints are firm enough to withstand the maximum load of the machine; the surface is polished flat without bumps or pits.

(3) One side of the mold fixing plate is equipped with T-slots and the other side with through slots,compatible with various types of winding jigs for installation.

4.2 Electrical Control System

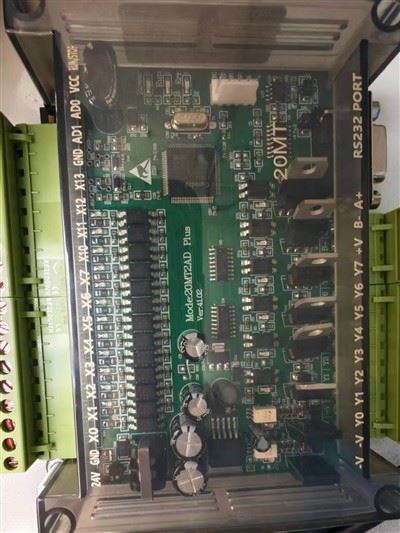

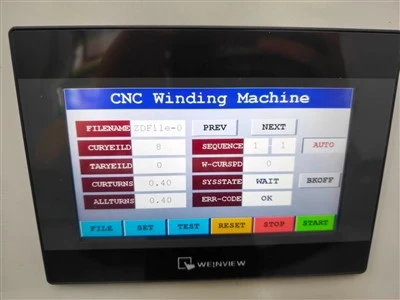

(1) The machine is controlled by a dedicated winding machine controller, which can display 0–9999.9 revolutions. It supports settings of winding turns, speed adjustment,winding group parameters, slow start and slow stop, as well as alarm functions for fault points and operation errors.

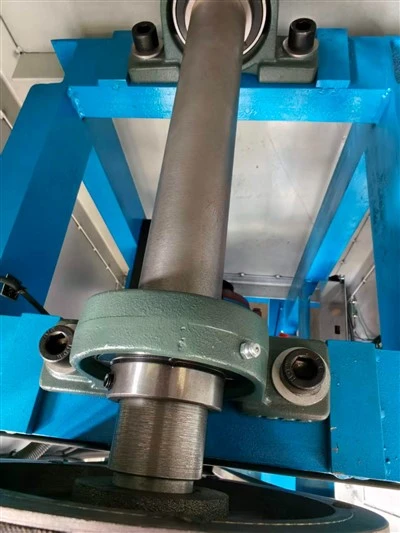

(2) The spindle is equipped with a belt-type reduction mechanism with spindle self-locking function. The rotation speed ranges from 5 to 160 rpm and is regulated via a frequency converter. It can maintain full output torque under low frequency without insufficient driving force. The transmission ratio is reasonably configured. The spindle sensor real-time monitors spindle torque and speed, with inertia pre-control function to guarantee accurate stopping position.

4.3 Accessories & General Requirements

(1) The overall machine structure is robust with reasonably arranged components. All spare parts will not interfere with normal operation during use. (2) The housing surface is finished by painting; all exposed mechanical operating parts are blackened. The painted surface is smooth and flat without missing spray,scratches or other coating defects.

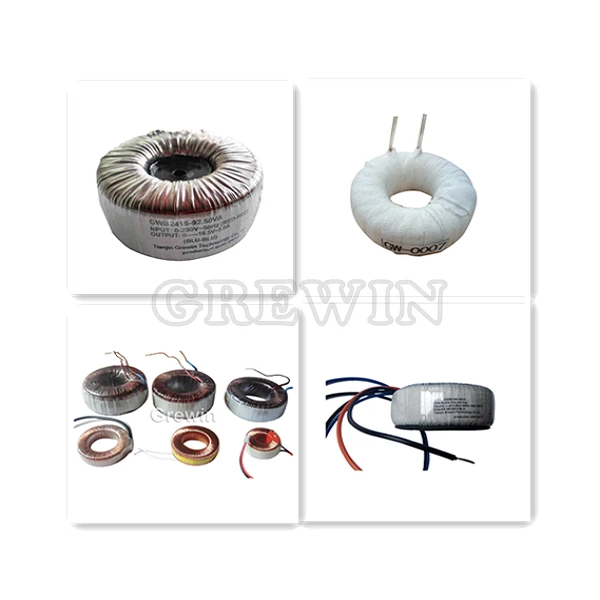

APPLICATION:

product-600-600

PRACTICAL APPLICATION

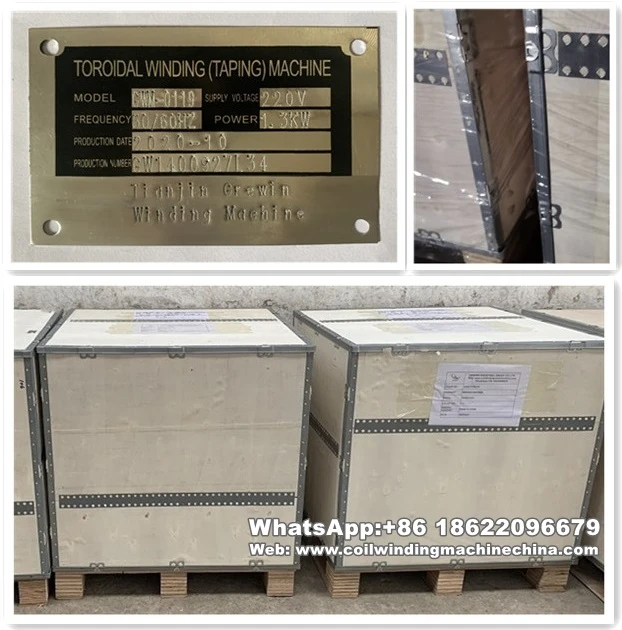

PACKAGING:

product-622-630
