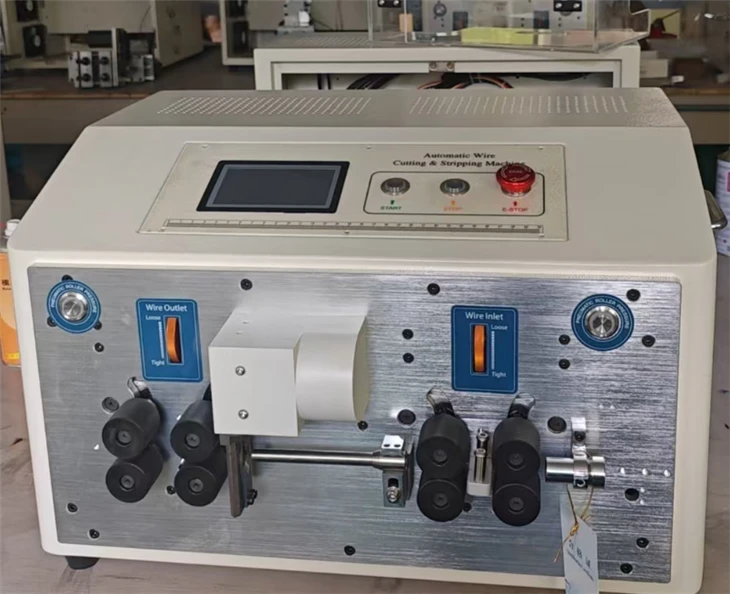

10mm² Fully Automatic Wire Stripping

Display Mode

4.3-inch Switchable Touch Screen Display

Weight

43KG

Power Supply

AC220/110V/60HZ/50HZ

Motor Power

Rated 550W

Overall Dimensions

560mm×460mm×365mm

Cutting Length

1~9999mm

Stripping Length

Wire Head 0-150mm

Wire Tail

0-100mm

Cutting Tolerance

± (0.002xL)mm

Cutting Wire Core Cross-section

Can strip round jackets with outer diameter up to 10mm or less Can strip BVR electronic wires under 10 square mm

SuitableWire Materials

PVC,Teflon,Glass Fiber Wire

Blade Material

High-speed Steel

Stripping Speed

(L=200MM strips/hour) 2000-3000

Drive Mode

Eight-wheel drive (Silent hybrid stepper motor, advances 0.1mm per step)

Max Guide Tube Diameter

φ13
