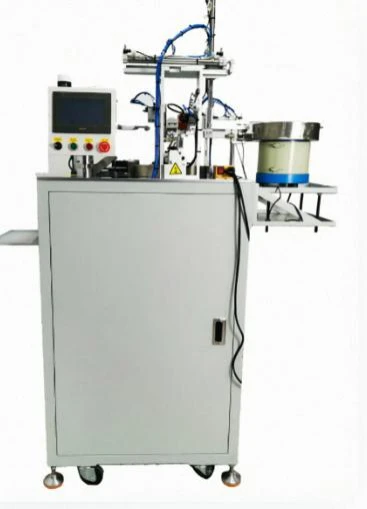

Fully Automatic Single Station Common Mode Choke Coil Winding Machine

Model:GWD-802
Power Supply：220V,8A
Max. Power：2950W
Air Cylinders：14
Motors：5 Servo Motors
Air Supply：0.55–0.7Mpa

Send Inquiry

Download

Description

SPECIFICATION:

Control System	PLC + Touch Screen	Weight	300KG
Power Supply	220V,8A	Winding Efficiency	0.8–1.5s/turn
Max. Power	2950W	Toroidal Core Outer Diameter	14–40mm
Air Cylinders	14	Applicable Wire Diameter	0.4–2.0mm
Motors	5 Servo Motors	Winding Length	1400mm
Air Supply	0.55–0.7Mpa	Inner Diameter Req	Must allow full-wound hook needle to pass smoothly
Dimensions	1.3 x 0.9 x 2.05m

APPLICATION:

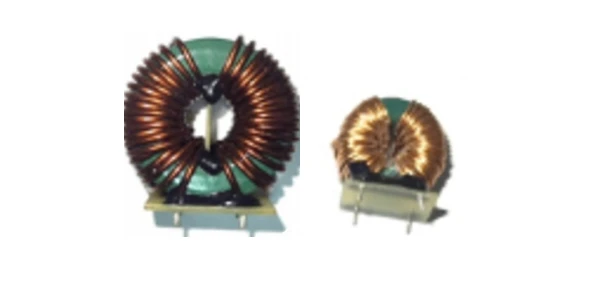

Toroid Winding Machine is the best suited to toroidal inductor, toroidal transformers,toroidal current transformers,toroidal coil, toroid choke coil, power inductors,UPS inductor,converter inductor and heavy toroidal core etc.
