Full Automatic Hook Type Winding Machine

SPECIFICATION:

Applicable line diameter range	0.3-1.0mm
Minimum finish inner diameter	3mm
Maximum completion height	20mm
Maximum finish outer diameter	28mm
Jacket range	6-28mm

Technical parameter:

1.Controller: using autonomous programmable PLC

2. Memory: it can be programmed

3. Program setting: use touch screen human-computer dialogue simple numerical programming input setting

4. Winding speed: the maximum speed of 3000 RPM can set the upper and lower winding speed

5. Skeleton driver: the servomotor

6. Line distance control: the line distance is automatically adjustable

7. Skeleton adjustment: automatic adjustment

8. Skeleton reversal: automatic adjustment

9. Acceleration: automatic

10. Slow down: automatic

11. Winding operation: automatic loading and unloading winding

12. Head drive: servomotor 400 W

13. Tension control: adjustable (automatic tension is optional)

14. Operating voltage: 220V, 50 HZ

15. Machine size: 1550L 600W 1800H (mm)

16. Weight of the machine: 100Kg NET, 150KG Gross



PRACTICAL APPLICATION :



TRAINNING CUSTOMER TO OPERATE WINDING MACHNE :

1.All service engineers with 10 years experience are gotten special technology training, who can deal with various breakdown problem.

2.Guide the user to use accurately and how to maintain the Hook Type Transformer Winding Machine.Provide free consultation about production process technology of electronic products.

3.In order to guarantee the machine used normally, we'd have training on how to operate, use and maintain our product by English manual, video, guiding on line.



PACKAGING:

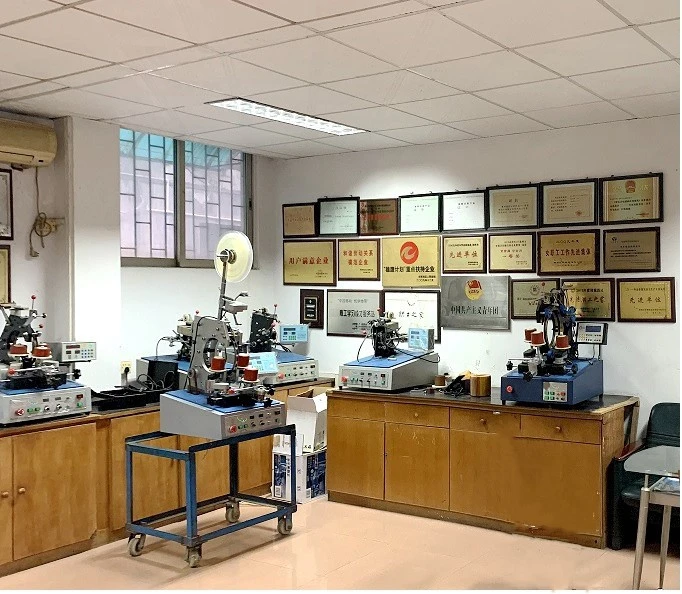

FACTORY:

VIDEO:



Are you ready to revolutionize your transformer coil winding process? Look no further than our cutting-edge Full Automatic Hook Type Winding Machine – the epitome of efficiency, precision, and automation. Designed to meet the demands of modern manufacturing, this full auto toroidal hook coil winder is your gateway to seamless production and unparalleled quality.

Key Features:

Effortless Automation: Our full automatic hook type winding machine takes the hassle out of coil winding. Experience a new level of efficiency as the machine handles the winding process with precision and speed. Say goodbye to manual labor and hello to increased productivity.

Versatile Toroidal Winding: Whether you're working with copper wire or toroidal transformers, our machine is designed to handle it all. The full automat copper wire toroidal transformer coil winding machine ensures that your winding needs are met with versatility and accuracy.

Precision Engineering: Achieve perfection in every winding with our toroidal full auto coil winding machine. The advanced technology embedded in this machine guarantees consistent and precise winding, meeting the highest industry standards.

Time-Saving Operation: Maximize your production output with the automatic hook type winder for transformers. The machine's efficient operation not only saves time but also reduces the risk of errors, ensuring a seamless workflow for your manufacturing process.

User-Friendly Interface: Don't let advanced technology intimidate you. Our automatic hook type winding machine boasts a user-friendly interface, making it easy for operators to set up, monitor, and adjust parameters. Your team can focus on what matters – achieving optimal results.

Reliability You Can Trust: Built with durability in mind, our winding machine is designed to withstand the rigors of continuous operation. Trust in its reliability to keep your production line running smoothly day in and day out.

Invest in the future of winding technology with our Full Automatic Hook Type Winding Machine. Whether you're a seasoned manufacturer or a startup looking to streamline operations, this machine is your ticket to unmatched efficiency and precision in transformer coil winding. Elevate your production capabilities today!
