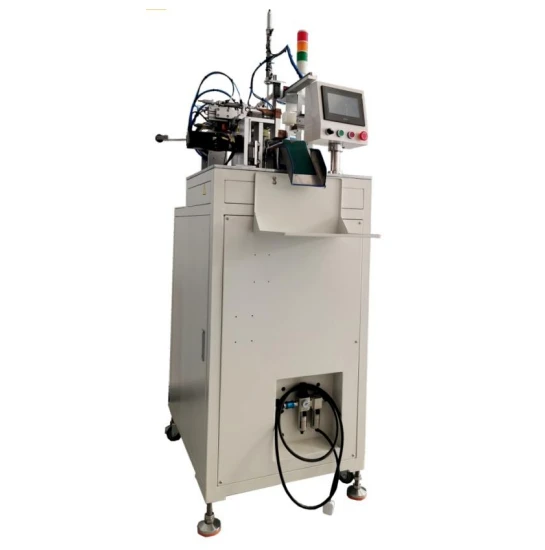

Fully Automatic Single Station Differential Choke Coil Winding Machine

Model:GWD-810
Power Supply:220V,8A
Max Power:2000W
Cylinders:14 pcs

Send Inquiry

Download

Description

SPECIFICATION:

Control System	PLC+Touch Screen	Hook Winding Efficiency	0.8-1.5s/turn
Power Supply	220V,8A	Magazine Outer Diameter	14-40mm
Max Power	2000W	Applicable Wire diameter	0.6-2.5mm
Cylinders	14 pcs	Max Winding Length	1400mm
Motors	2 pcs servo motors,1 pc stepping motor	Weight	200KG
Air Pressure	0.55-0.7 Mpa	Inner Diameter Requirement	The hook needle can pass through when fully hooked
Mechanical dimensions	0.860.642.05m	Winding Mode	Single wire /Double wire parallel winding

APPLICATION:

Toroid Winding Machine is the best suited to toroidal inductor, toroidal transformers,toroidal current transformers,toroidal coil, toroid choke coil, power inductors,UPS inductor,converter inductor and heavy toroidal core etc.
