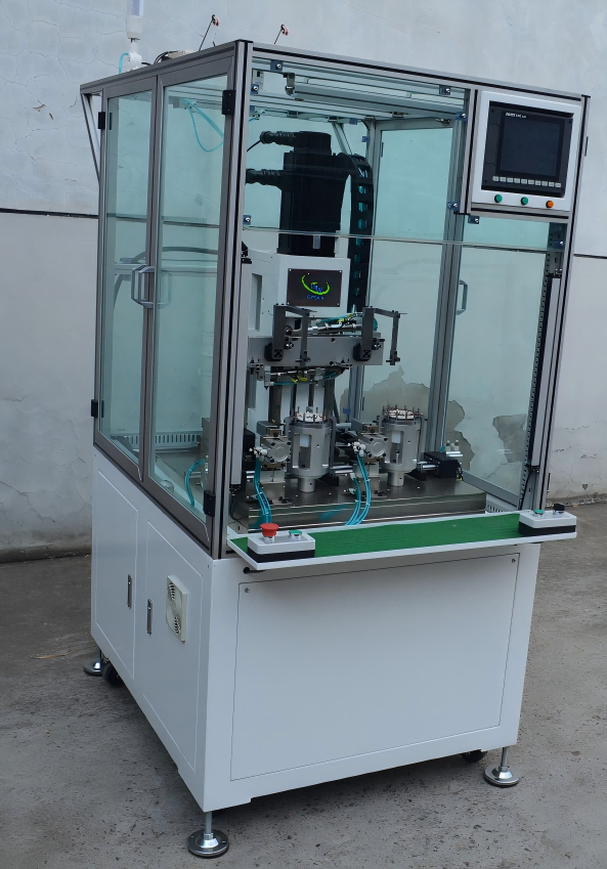

Double -station Stator Winding Machine

Parameter：

Winding method:

internal winding machine

Maximum outer diameter that can be wound:

≤170mm

Applicable rotor stack thickness:

≤90mm

Wire diameter:

0.2mm-1.4mm

Safety protection:

two-hand start + raster sensor

Power Supply:

three-phase 380V (±10%)

Air Source:

0.4-0.6 Mpa

Axis of rotation (A1/A2 axis)

Number of axis:

2

Shaft spacing：

260mm

Rotation shaft motor power:

servo 4.5KW*2, Taiwan Yitu absolute position servo

Positioning accuracy of transposition axis:

≤±0.5°

Rotation axis mode:

servo motor

Z-winding:

Z-direction motor:

servo ≥5KW, Taiwan Yitu absolute position servo

Three-dimensional mobile device：

Drive motor:

X 400W Taiwan Yitu absolute position servo Y 400W Taiwan Yitu absolute position servo

3D travel:

X≤180mm;Y≤120mm;Z≤200mm

Moving speed:

≥100mm/s

Scissors device:

Lead length:

according to drawing requirements

Scissor mode:

pneumatic

Scissors can cut wirediameter range:

0.2~ 1.5mm

Key component name

Brand

Machine

Solenoid valve:

AirTAC

Cylinder:

Airtac

Linear guide rail:

Taiwan Shang Yin

Ball screw:

German Rexroth

Pneumatic scissors:

domestic

Main shaft bearing:

NSK

Electric:

Servo motor:

Taiwan Edu absolute position servo

Control system:

Taiwan Yitu A6/CNC system

Power switch:

Japan Mitsubishi

Switching power supply:

Taiwan Mingwei

Button:

Schneider

Photoelectric sensor:

Omron

Touch screen:

Taiwan Edu

Raster:

Ottonicus
