Fully Automatic Hook Winding Machine For Small Transformer Coils

GW-AM-070 Full automatic hook-type winding machine



SPECIFICATION:

Applicable wire diameter range	0.3-1.0mm
Minimum finish core inner diameter	3mm
Maximum completion core height	20mm
Maximum finish core outer diameter	28mm
Jacket range	6-28mm

Technical parameter:

Controller: using autonomous programmable PLC

2. Memory: it can be programmed

3. Program setting: use touch screen human-computer dialogue simple numerical programming input setting

4. Winding speed: the maximum speed of 3000 RPM can set the upper and lower winding speed

5. Skeleton driver: the servomotor

6. Wire distance control: the line distance is automatically adjustable

7. Skeleton adjustment: automatic adjustment

8. Skeleton reversal: automatic adjustment

9. Acceleration: Automatic

10. Slow down: Automatic

11. Winding operation: automatic loading and unloading winding

12. Head drive: servomotor 400 W

13. Tension control: adjustable (automatic tension is optional)

14. Operating voltage: 220V, 50 HZ

15. Machine size: 1550L 600W 1800H (mm)

16. Weight of the machine: 100Kg NET, 150KG Gross



GW-AM-070 machine is a high-tech automatic loading and unloading winding and soldering machine, a man-machine dialogue display screen and the nose and fixture of flexible replacement system combined with VU machine, by precision accessories and independently developed PLC system, powerful servo motor drive head, precision servo motor drive iron core. The user can use the machine through the simple setting of the operation technician.

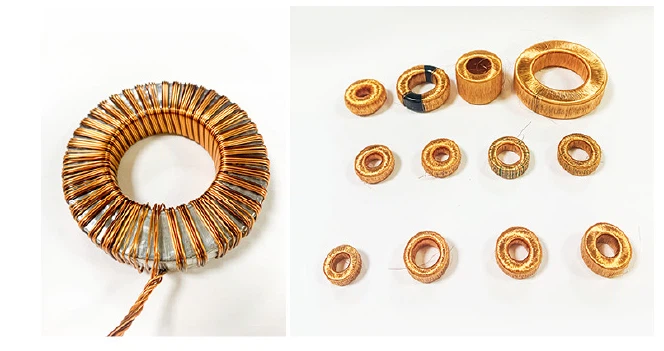

GW-AM-070 is suitable for special single-wire and double-wire winding specifications, precision winding, maintenance-free, and simple repair. This equipment is applicable to all kinds of ring coil material application manufacturing, the main components of the equipment are developed and produced by the company, self-assembled, to ensure excellent quality and processing characteristics, the best production quality guarantee, and a strong publicity effect for customers, improve your competitiveness in the domestic and international markets.
