Servo Motors Toroidal Transformer Winding Machine

SPECIFICATION:

Model：	GW-F50
wire diameter range：	0.5-3.55MM (single wire：3.55mm,double wire：2.24mm*2)
magazine diameter：	340MM
Max. finished O.D.:	100-420MM
Min. finished I.D.:	50
Max. finished height:	150
Max. Winding Speed:	100
Winding head	GW110T



Machine dimensions and weight:



140 x 96x180 CM, 350 KGS NET GROSS,2.42CBM.



FEATURES:Floor Type



Brand-new PLC + touch screen control system, adopting German manufacturing technology.Main drive by servo motor to ensure 100% accurate winding turns.Sub-motor also uses servo motor for neat and precise wire arrangement.Automatic/manual selection for forward/reverse rotation direction.Automatic/manual control of wire pitch.Automatic/manual adjustment of winding speed.

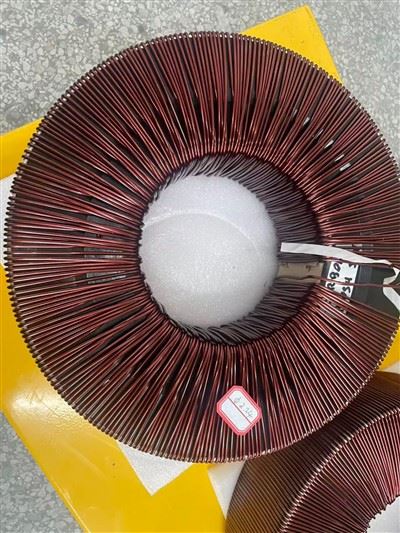

PRACTICAL APPLICATION :



TRAINNING CUSTOMER TO OPERATE WINDING MACHNE :



1.All service engineers with 10 years experience are gotten special technology training, who can deal with various breakdown problem.



2.Guide the user to use accurately and how to maintain the Hook Type Transformer Winding Machine.Provide free consultation about production process technology of electronic products.



3.In order to guarantee the machine used normally, we'd have training on how to operate, use and maintain our product by English manual, video, guiding on line.
