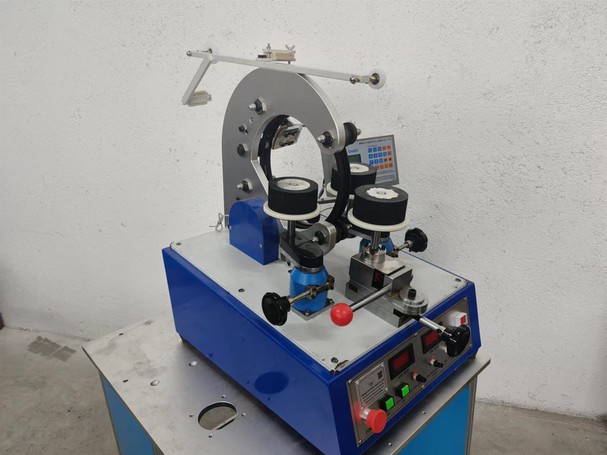

Winding Machine For Toroidal Transformer

SPECIFICATION:

Suitable winding diameter range	0.5-1.8mm
Finally completed outer diameter	60-200mm
Minimum completed inner diameter	30mm
Maximum finished height	110mm
Width of magazine	3-10mm (optional)
Magazine diameter	287mm
Maximum winding speed	230 rpm
Presetable programs	50*20 groups (1000 running programs)
Overall machine weight	100kg

FEATURES：



1.Toroid Transformer Winding Machine are advanced,strongly built workhorses capable of winding light as well as heavy wire without insulation damage.

2.The open gap gear rack and hinged gap magazine of Toroid Transformer Winding Machine facilitate core change ,maximzing output.

3.Easily exchangeable magazines secure maximum flexbility.

4.Extremely powerful,maintenance free AC motors for main drive and core rotation.

5.High technical winding shuttle for winding by highest efficiency.

6.Toroid Transformer Winding Machine can accurately count length of loading by limited-switch.

7.Toroid Transformer Winding Machine can accurately count turns of winding and taping by photo-electricity sensor.





ADVANTAGES:



1.Stable machine performance

2.Communicate parameters in a timely and thoughtful manner

3.Wide range of application, Large range of Speed adjustment, wide range of the wire diameter, Multi-style of core, Brake tension adjustable, Good settlement for large outer diameter, small inner diameter, heavy wire coils.

4.High production efficiency, increase winding efficiency by adjustment of suitable brake tension,

5.Each wiring part guarantee no wire damage.

6.Parts highly optimized and universal for general use, Easy maintenance

7.Complete specifications and data.



WINDING MACHINE GWL-715



GWL-715 Winding Machine Accessories List
No.	Name	Quantity	Unit	Remark
1	Electric Eye(Turns sensor)	1	PCS	PNP
2	Brake Linings	10	PCS
3	Green Key Switch	2	PCS
4	Red Key Switch	1	PCS
5	Left and Right Switch	1	PCS
6	Potentiometer	2	PCS
7	Switch	1	PCS
8	Foot Pedal Circuit Board	1	PIECE
9	Foot Pedal Copper Sheet	1	PIECE
10	Motor Belt	1	PCS
11	Speed Change Belt	1	PCS	86XL
12	Magazine guide hook	5	PCS
13	Magazine guide wheel	5	PCS
15	Magazine guide ring	1	SET
16	Allen wrench	1	PCS



APPLICATION:

Toroid Winding Machine is the best suited to toroidal inductor, toroidal transformers,toroidal current transformers,toroidal coil, toroid choke coil, power inductors,UPS inductor,converter inductor and heavy toroidal core etc.
