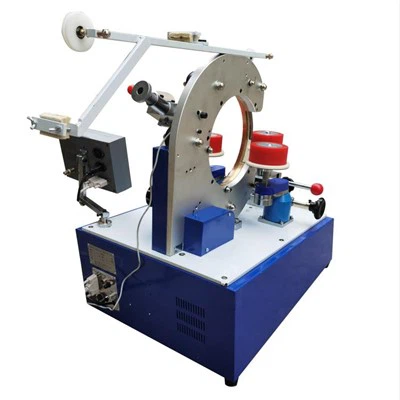

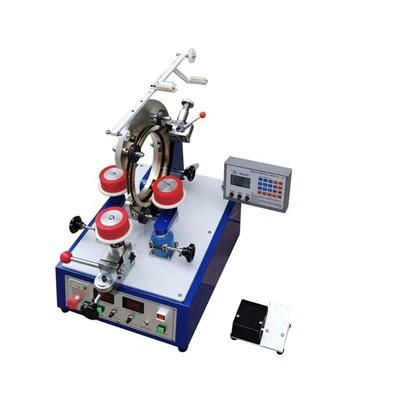

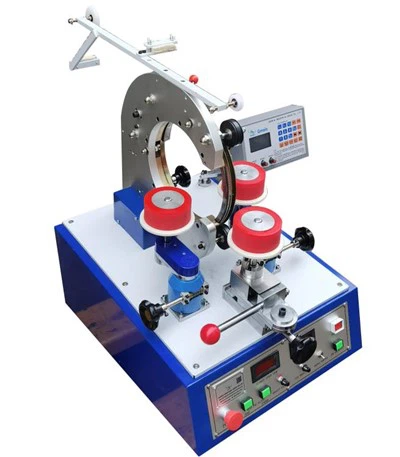

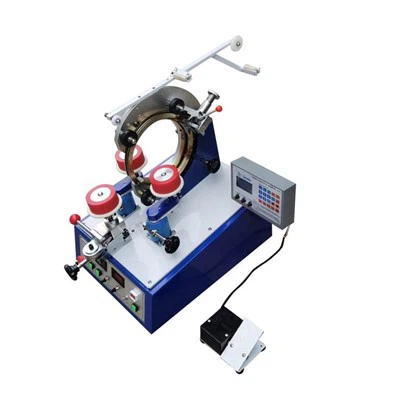

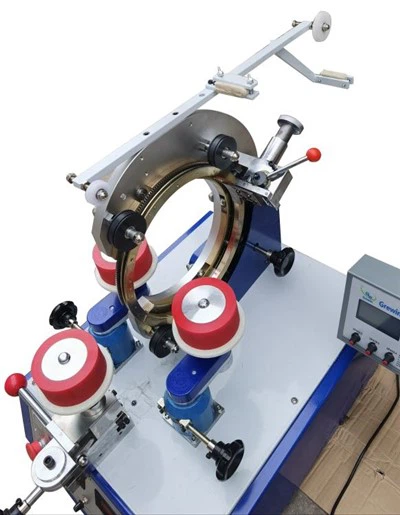

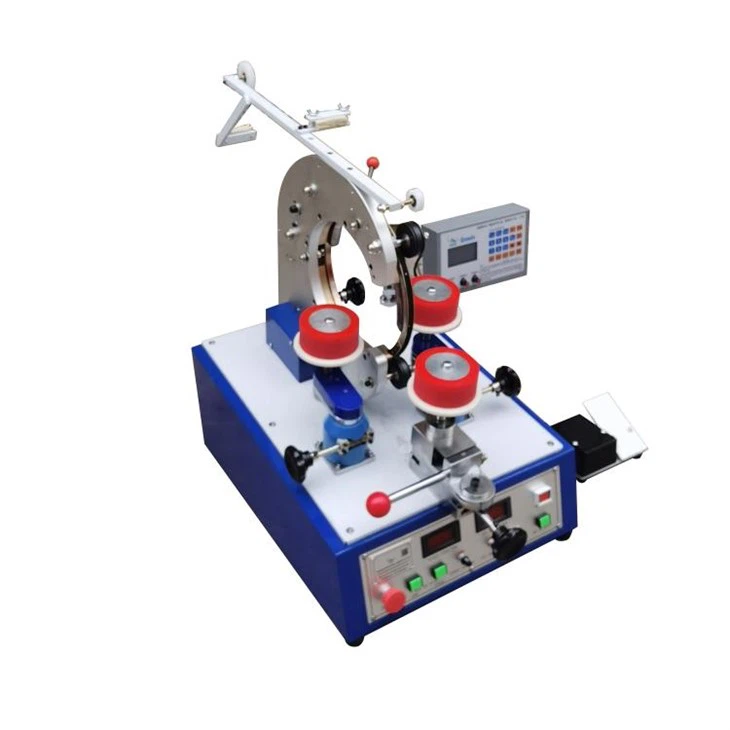

Middle Speed Toroidal Core Copper Wire Coil Winding Machine

SPECIFICATION:Main technical parameters table: (Unit: mm)



Equipment model	GWL-0119
Winding mode	Gear type
Finally complete the outside diameter	80-200
Minimum finished inside diameter	40
Maximum finished height	80
Wire diameter	0.7-2.5
Perimeter of magazine	300
Width of magazine	8-25
Maximum speed	230 RPM
Operating voltage	220V/50HZ
Overall dimension	500x600x750
Weight	120KG





FEATURES：

1.GWL-0119 Toroid Digital Transformer Winding Machine are advanced,strongly built workhorses capable of winding light as well as heavy wire without insulation damage.

2.One set standard automatic toroid coil winding include one PCS winding shuttle only,other sizes winding shuttles are optional.

3.The open gap gear rack and hinged gap magazine of Toroid Digital Transformer Winding Machine facilitate core change ,maximizing output.

4.Accurately wire and tape spacing by adjustable.

5.Toroid Digital Transformer Winding Machine can easily exchangeable magazines secure maximum flexbility.

6.Extremely powerful,maintenance free AC motors for main drive and core rotation.



ADVANTAGE:

1.Complete range of articles, large range of wire diameter, Multipurpose

2.Good compatibility, parts are interchangeable

3.High stability, part quality guarantee

4.High production efficiency, no wire breaking at high speed winding

5.Easy to operate, High learnability





APPLICATION:

Toroid Winding Machine is the best suited to toroidal inductor, toroidal transformers,toroidal current transformers,toroidal coil, toroid choke coil, power inductors,UPS inductor,converter inductor and heavy toroidal core etc.



PRACTICAL APPLICATION :

TRAINNING CUSTOMER TO OPERATE WINDING MACHNE :

1.All service engineers with 10 years experience are gotten special technology training, who can deal with various breakdown problem.

2.Guide the user to use accurately and how to maintain the product.Provide free consultation about production process technology of electronic products.

3.In order to guarantee the machine used normally, we'd have training on how to operate, use and maintain our product by English manual, video, guiding on line.





PACKAGING:



FACTORY:



VIDEO:



Are you searching for the ultimate solution in transformer winding technology? Look no further! Our Automatic Toroid Transformer Winding Machine is the epitome of precision, efficiency, and reliability. Crafted with cutting-edge technology, this machine is designed to meet all your winding needs with unparalleled accuracy.

Key Features:

1. Precision and Efficiency: Experience unmatched precision in winding with our Middle Speed Toroidal Core Copper Wire Coil Winding Machine. Its advanced automation ensures every winding is consistent and accurate, saving you time and effort. Whether you're dealing with power transformers or round transformers, this machine guarantees perfection in every coil.

2. Versatility at Its Best: Our China Automatic Toroid Winding Machine is incredibly versatile. It's not just limited to toroidal transformers; it's equally adept at handling various winding tasks. From semi-automatic transformer winding to power transformer winding, this machine is your all-in-one solution.

3. User-Friendly Interface: Navigating through complex winding tasks has never been easier! The Automatic Toroidal Machine features an intuitive user interface, allowing you to program specific winding patterns effortlessly. Its user-friendly design ensures that both beginners and experienced professionals can operate it with ease.

4. Unrivaled Durability: Built with high-quality materials and state-of-the-art engineering, our machine guarantees durability and longevity. It's designed to withstand heavy usage, making it the ideal choice for industrial applications where reliability is paramount.

5. Cost-Effective Solution: Investing in our Semi-Automatic Transformer Winding Machine is a smart financial choice. Its efficient winding process reduces material wastage, and its long lifespan ensures minimal maintenance costs, making it a cost-effective solution for your business.

6. Exceptional Performance: Experience the seamless performance of our Round Transformer Winding Machine. Its middle speed capabilities strike the perfect balance between speed and precision. With this machine, you can achieve high-quality winding without compromising on production speed.

Don't miss the opportunity to elevate your transformer winding processes to new heights. Embrace the future of winding technology with our Middle Speed Toroidal Core Copper Wire Coil Winding Machine. Whether you're in the electronics, telecommunications, or manufacturing industry, this machine will revolutionize your production line.
