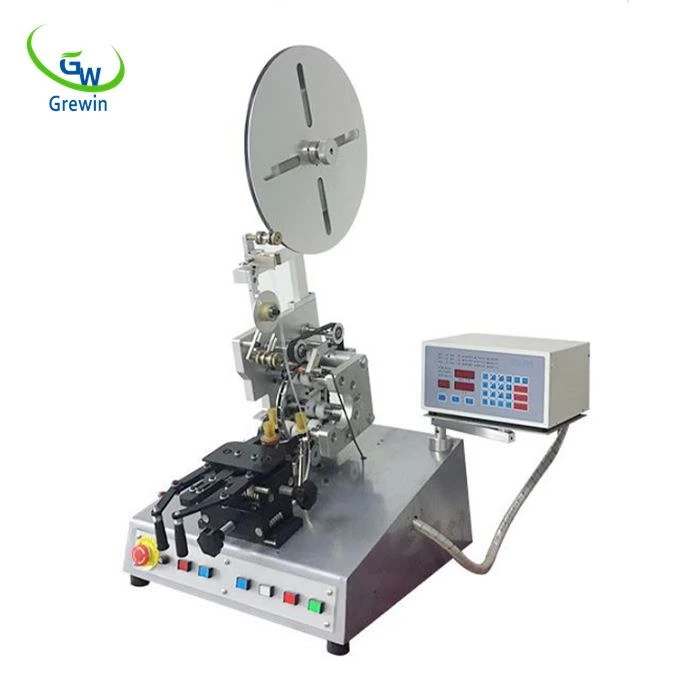

GW-21T6 Digital Core Taping Winder Machine
With 20 years of experience in R&D and production,the quality of Digital Core Taping Machine and products is fidelity
Description
NAME： GW-21T6 Digital Core Taping Winder Machine
Functions and features:
1. Taiwan controller and inverter drive, with energy-saving, low noise, less maintenance, long life and so on.
2. Multi-function microcomputer design, data setting is easy, data can be saved for more than one year after shutdown.
3. The length of storage zone can be set.
4. Edit parameters according to product (inside diameter, outside diameter, height, wire diameter, number of turns).
5. The line arrangement mode can be either straight or reverse winding, or set Angle winding.
6. 0~999 group step setting capacity, can set the line storage and winding speed respectively, and can choose different line direction, winding Angle and section Angle.
Hot Tags: gw-21t6 digital core taping winder machine, China, suppliers, manufacturers, factory, price, made in China
SPECIFICATION
Tape width | 150mm | Max.winding speed | 300 rpm |
Max.final coil.O.D | 60 mm (Max) | Tape spacing | 5 - 10 mm (Depends on the width of shuttle) |
Min.final coil.I.D | 15 mm (Min) | Supply voltage | AC 220V（50Hz） |
Max.finalcoil height | 45 mm (Max) | The spindle motor
| 600W |
