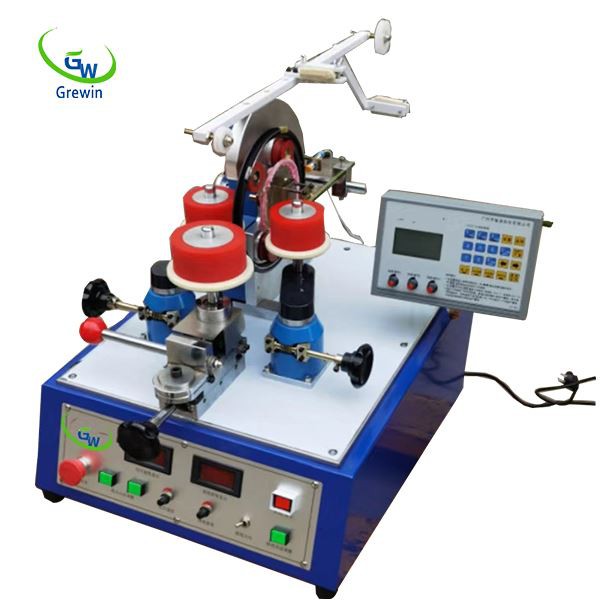

Copper Wire Automatic Winding Machine



Equipment model：	GWL-6200
Winding mode：	Gear type
Finally, complete the outside diameter：	60-120
Minimum finished inside diameter：	35
Maximum completion height：	80
Suitable winding diameter range：	0.2-0.7
Diameter of wire storage ring：	195
Width of the storage ring：	9-12
Maximum speed：	800 RPM
Operating voltage：	220V/50HZ
Overall dimension：	500x600x700
Weight：	90KG



A copper wire automatic winding machine is a valuable tool that can help organizations that require copper wires to wind them up with ease and efficiency. The machine is easy to use, and with the advancement in technology, it has become even more user-friendly. In this article, we will discuss how to use the copper wire automatic winding machine.



Step One: Prepare the Copper Wire

The first step is to prepare the copper wire before using the automatic winding machine. This involves ensuring that the wire is straightened out and that any kinks or knots are removed. The wire should be measured according to the required length and thickness, which can be achieved using a wire stripper.



Step Two: Setup the Machine

The second step is to set up the copper wire automatic winding machine. This involves reading the user manual carefully to understand the various parts and buttons available on the machine. Familiarizing oneself with the machine is crucial to ensure that it is used safely and correctly.



Step Three: Set the Parameters

Once the machine is understood, the parameters need to be set to establish the desired length, width, and thickness of the copper wire. This can be achieved through the computer interface that is present on most automatic winding machines. Set the parameters according to the required specifications, and ensure that the machine is calibrated correctly.

Step Four: Load the Copper Wire

After setting the parameters, the copper wire needs to be loaded onto the machine. Carefully place the copper wire on the spool and secure it using the clamps provided. This ensures that the wire will not become undone or slip during the winding process.



Step Five: Start the Machine

Once the copper wire is securely loaded onto the machine, it is time to begin the winding process. Start the machine using the controls provided on the interface, ensuring that the machine is running at the correct speed and tension. The machine will automatically wind the copper wire according to the set parameters.



Step Six: Monitor the Machine

Although the copper wire automatic winding machine is designed to be user-friendly and requires minimum supervision, it is still important to monitor the machine during the winding process. This ensures that the process is completed successfully, and any errors or malfunctions are detected early.



Step Seven: Remove the Copper Wire

After the winding process is complete, it is time to remove the copper wire from the machine. Carefully remove the wire spool, disconnect it from the machine, and remove the copper wire from the spool. The wire is now ready to be used for its intended purpose.



Conclusion

In conclusion, using a copper wire automatic winding machine might seem daunting at first, but with the correct setup and preparation, it is a straightforward process that can save time and effort. Familiarizing oneself with the machine and its controls, setting the required parameters, and carefully loading the copper wire spool are crucial steps in ensuring that the machine is used correctly and safely. By following these simple steps, one can successfully wind copper wire and increase productivity and efficiency.



Copper wire automatic winding machines are advanced and sophisticated pieces of equipment used in various industries such as automotive, telecommunications, medical, and electronic manufacturing. They offer several advantages over traditional winding systems, making them an ideal choice for many industries, including:



1. Consistency and Precision

One of the primary advantages of copper wire automatic winding machines is the ability to produce consistent and precise windings every time. This consistency ensures that the quality of the products manufactured is high and meets the required specifications. Automatic winding machines come equipped with sensors that detect errors and correct them automatically, ensuring that the winding process is always accurate.



2. Increased Efficiency

Automatic winding machines can significantly increase the efficiency and productivity of manufacturing processes. Traditional hand winding can be time-consuming and labor-intensive, while automatic winding machines can wind thousands of coils in a short time. The machines also require minimal supervision, making them a cost-effective solution for manufacturers who require high-volume production.



3. Cost-effective

Copper wire automatic winding machines are relatively inexpensive, especially when compared to the cost of hiring skilled labor to perform the job manually. The machines are durable and require little maintenance, reducing the cost of repairs and replacements. The machines are also energy-efficient, consuming less power than traditional winding machines, leading to a significant reduction in energy costs.



4. Customized Solutions

Another advantage of copper wire automatic winding machines is the ability to create customized solutions. The machines can be programmed to create unique winding patterns and accommodate different wire sizes, allowing manufacturers to produce a range of products with varying specifications. This flexibility allows manufacturers to offer customized products that meet the specific needs of their customers.



5. Safe and Easy to Use

Copper wire automatic winding machines are easy to use and require minimal operator training. The machines are also equipped with safety features such as sensors that detect abnormalities, emergency stop buttons, and automatic shut-off systems. These features help to protect operators from accidents and injuries, making the winding process safe and efficient.



6. High-quality Products

Copper wire automatic winding machines help manufacturers produce high-quality products consistently. The machines can ensure that every coil produced has the required specifications, leading to products that meet or exceed industry standards. This quality control helps to minimize waste and reduce the number of rejected products, saving manufacturers time and money.



7. Improved Lead Times

Copper wire automatic winding machines can produce coils quickly, reducing lead times for manufacturers. This is particularly important in industries such as telecommunications, where products need to be delivered quickly. Shorter lead times also mean that manufacturers can respond to changing market needs quickly, helping them stay competitive.



8. Improved Productivity

Automatic winding machines can significantly increase productivity in manufacturing processes. The machines can work continuously, unlike manual winding, which requires frequent breaks. This increased productivity can help manufacturers meet customer demands quickly, leading to increased sales and profitability.



9. Versatility

Copper wire automatic winding machines can be used in various industries and for different products. The machines can wind coils for transformers, motors, and other electrical devices. They can also be used in the automotive industry to produce coils for spark plugs and ignition systems. This versatility makes automatic winding machines an ideal choice for any manufacturer looking to increase efficiency and productivity.



Conclusion

Copper wire automatic winding machines offer several advantages to manufacturers, including improved efficiency, productivity, and cost-effectiveness. The machines are also safe and easy to use, leading to high-quality products that meet industry standards. By investing in automatic winding machines, manufacturers can improve their manufacturing processes, reduce costs, and remain competitive in their respective industries.
