Automatic Single Station Toroidal CMC Hook Machine

SPECIFICATION：

Device model	GW-AM-080 Fully Automatic Single Station Toroidal Hook Machine
Minimum and maximum processing dimensions of magnetic core	Inner diameter: minimum 4mm Maximum outer diameter: 25mm
spindle maximum speed	3000rpm
AC servo motor	Winding spindle: 400W
Wiring motor/loading and unloading motor	57 steps/42 steps
wire arrangement angle	360 degrees per circle, setting unit is 0.1 degrees
Axis stopping accuracy	plus or minus 1 degree
Applicable magnetic core specifications	Maximum outer diameter: 25; Minimum inner diameter: 2; Maximum thickness: 12
Applicable wire diameter	0.25mm-1.5mm
wire arrangement	Front and back arrangement (can automatically pull out wire ends)
Axis movement amount	XB:150mm / YB:120度 ZB/30mm XB:150mm / YB:120 degree ZB/30mm
Axis moving speed	300mm/sec
control method	CNC 5-axis control board (independent research and development)
Storage method	RAM+FLASH storage, no data loss failure
voltage	Single phase three wire system
	220V,50HZ
consume electricity	1.0KW
compressed air pressure	0.5-0.8MPa
Equipment size	1500mm(L)×800mm(W) ×1500mm(H)
equipment weight	200Kg

GW-AM-080 machine is a high-tech automatic loading and unloading winding and soldering machine, man-machine dialogue display screen and the nose and fixture of flexible replacement system combined with machine, by precision accessories and independently developed PLC system, powerful servo motor drive head, precision servo motor drive iron core.



The user can use the machine through the simple setting of the operation technician. GW-AM-080 is suitable for special single wire and double wire winding specifications, precision winding, maintenance free, simple repair.



This equipment is applicable to all kinds of ring coil material application manufacturing, the main components of the equipment are developed and produced by the company, self-assembled, to ensure excellent quality and processing characteristics, the best production quality guarantee and a strong publicity effect for customers, improve your competitiveness in the domestic and international markets.



FEATURE：



1. The key parts of the machine are imported from Taiwan or Japan, with strong reliability and high durability, which greatly increases the service life of the equipment;



2. Novel appearance design, simple and reliable structure, simple operation and convenient maintenance;



3. The equipment adopts self-developed CNC high-speed motion control board, touch screen human-machine dialogue debugging parameters, and easy-to-understand Chinese and English displays;



4. The equipment has the functions of automatic thread hanging, automatic thread cutting, automatic alarm and shutdown when disconnected, and a single person can take care of more than 8 pieces of equipment;



5. The standardized design of the equipment comes with built-in plug-in module extension functions and has secondary development function modules;



6.The equipment wiring arrangement has high precision, the controller human-machine interface display, Chinese and English layouts can be switched between each other, 10 sets of programs can be stored, the computer can store unlimited, 20 threads and 200 lines of programmable programs, real-time display of operating parameters, such as Storage/winding, speed, number of turns, output, and product time cycle, etc. The program can set acceleration and deceleration to avoid impact breakage, the number of turns is accurate, and copper wire is saved. It can be completed automatically: dense winding, sparse winding , forward and reverse winding, segmented winding, multi-wire parallel winding and other winding methods, suitable for winding various conventional and special-shaped inductor coils in the inductor coil, resistor coil, and transformer coil industries.





PACKAGING:

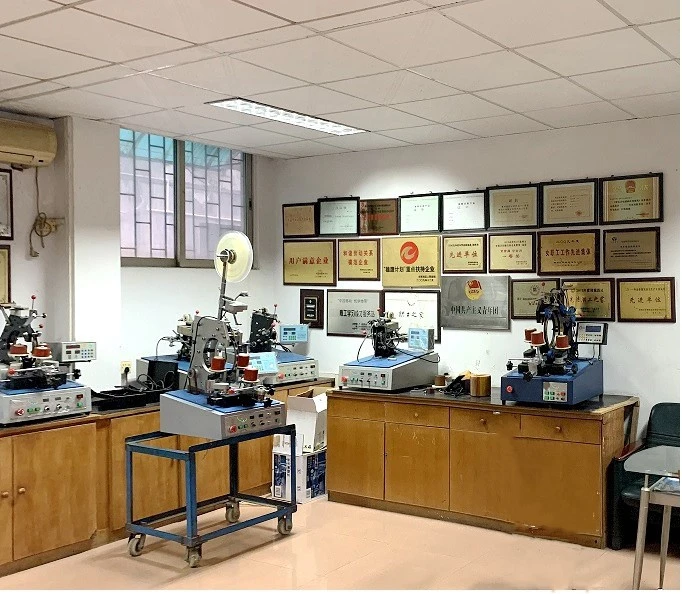

FACTORY:







VIDEO:





Unveiling Cutting-Edge Automation: Features at a Glance

1. Full Automation Unleashed: Step into the future with this full automatic hook type winding machine. It embodies the pinnacle of automation, streamlining the winding process for toroidal coils and common mode chokes with unparalleled precision and efficiency.



2. Unmatched Precision in Winding: Witness precision redefined with this full auto toroidal hook coil winder. Each winding operation is executed with absolute accuracy, ensuring uniformity and reliability in every coil produced.



3. Efficiency Redefined: The fully automatic copper wire toroidal transformer inductor coil winding machine is a game-changer in production efficiency. It optimizes the winding process, significantly reducing production timelines without compromising on quality.



4. Seamless Operations: Experience the convenience of the toroidal full auto coil winding machine. Its intuitive design ensures seamless operations, allowing for easy setup and minimal downtime between winding tasks.



5. Common Mode Choke Excellence: Dive into the world of common mode chokes with the fully automatic hook type winder. It's specifically engineered to meet the demands of common mode choke production, offering precision and versatility.



Advantages Redefined: Elevating Your Production

1. Precision Beyond Comparison: The full-automatic hook type winding machine guarantees precision in each winding, ensuring that every toroidal coil or common mode choke meets the strictest quality standards.



2. Streamlined Efficiency: Experience enhanced productivity as the machine optimizes the winding process, allowing for increased output and faster turnaround times, without compromising on the precision of the end product.



3. Versatility in Applications: Adaptability is key. This machine accommodates various winding requirements, whether it's for toroidal transformers, inductors, or specialized common mode chokes, making it a versatile asset for your production line.



4. User-Friendly Interface: Operators will find the fully automatic hook type winding machine intuitive and easy to operate, enabling them to oversee the process with ease and ensuring consistent, high-quality output.



5. Future-Ready Technology: Embrace the future of coil winding technology. Investing in this fully automatic machine positions your business at the forefront of innovation, ready to meet the demands of a rapidly evolving industry.



The Automatic Single Station Toroidal CMC Hook Machine isn't just a machine-it's a strategic asset that redefines efficiency, precision, and versatility in toroidal coil and common mode choke production. As the industry demands excellence, investing in this cutting-edge technology ensures that your business remains competitive, efficient, and prepared for the challenges and opportunities of tomorrow's market. Revolutionize your production capabilities today with this state-of-the-art automatic winding machine.
