When you have a transformer Coil Winding Machine with stepping motor, it is important to know how to operate and maintain it. This will ensure that you can get the most out of it.

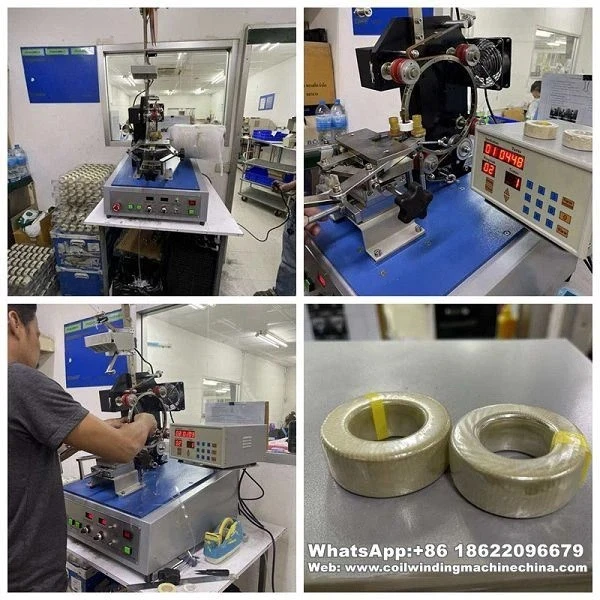

Assemble
If you're looking for a reliable transformer coil winding machine, you should look no further. These machines are known for their robustness and flexibility. They can be used for manufacturing secondary windings for electrical transformers as well as power and distribution transformers. Some of them are automatic while others are semi-automatic.
The key feature of a transformer coil winding machine is its ability to produce quality coils. This allows manufacturers to make products in different shapes and sizes. In addition, this type of machine is often computer-controlled. It also allows you to set the right conditions for central field coil winding. You can use it to manufacture power and distribution transformers as well as switchgear.
The first step in the winding process is to insert the wire into the core. This is done with the help of a flyer. Afterward, you should fix the wire outside the flyer. Ideally, the wire should enter the coil at an angle, allowing you to avoid unnecessary bending.
Next, you must determine the appropriate location for the first winding step. Depending on the size and shape of the coil, you will need a certain number of contact points. For example, if you're winding three single-tooth poles, you'll need at least six contacts.
Another important step is determining the diameter of the coil. A coil with a smaller diameter will require fewer segments to curl on a spiral device, while a larger one will require a more complex setup.
Once you know the diameter of the coil, you need to make a decision on where to place the winding step. If you choose a location that is too far away from the post of the coil, you may end up with a wild winding. On the other hand, if you place the winding step near the post of the coil, you will reduce the number of contact points and create a higher-quality winding.
Finally, you need to determine how many phases will be winded on a particular section of the coil. Each phase will have a specific wire that is connected to the rest.
Maintain
There are several ways to perform maintenance on transformer Coil Winding Machine with stepping motor. The most common is to conduct condition-based maintenance. This involves performing regular inspections and tests on the equipment. Performing preventive maintenance can help reduce the chances of breakdowns and repair costs.
Maintaining the condition of your transformer can improve its performance and lifespan. In addition, it can also reduce downtime. Therefore, you should follow some basic steps to keep your transformer in top shape.
One of the best ways to maintain your transformer is to conduct regular inspections. These routine checks include monitoring the MOG (Magnetic Oil Gauge) and oil temperature indicators.
Also, you should perform a thorough check on the cooling system and its components. Your transformer is susceptible to deterioration and failure if it has problems with the air and water coolers. You should also examine the physical condition of the fans. If necessary, you can clean the air-side of the water tubes and coolers with a vacuum cleaner.
To protect your transformer, you should also install a high-quality surge protection system. A short circuit in the control circuit or improper connection may be the cause of a transformer failure.
Infrared cameras are also helpful in detecting less obvious warning signs. For example, a change in thermal pattern can indicate overheating.
Aside from these, you should always have your equipment checked by an experienced technician. These professionals can easily identify any hidden trouble with your transformer. They will also dig deeper during internal inspection if they find any abnormal operation.
Another important step during planned outages is to check the alarm contacts of the Buchholz relay. They should be cleaned annually.
Oil leaks from the joints should be detected and corrected. Oil leaks may come from a number of sources. When you see an oil leak, you should take a shutdown and shut down the transformer. It's important to do this to prevent further damage to the insulation.
Other important maintenance tasks include the replacement of gaskets. Gaskets are usually made of liquid-resistant cork sheets.
Additionally, you should inspect the pressure relief device and the cable box bushings. Cleaning these parts regularly will reduce the risk of clogging.
Repair
If your transformer coil winding machine with stepping motor needs repair, there are several steps to take. It may be due to the laminations, wire, or other components. Getting your winding machine back in good condition is important for the quality of your electric motor. In addition to the repair, it is also important to test the motor.
First, it is vital to identify the separating point. This point should be near the post of the coil. When the separating point is located at the optimum location, subsequent contacting will be easier.
Next, it is imperative to check the type of electrical steel used. The type of steel can make a difference to the motor's efficiency. A good practice is to use the same size of wire area for each turn.
Secondly, it is imperative to keep the insulation resistance consistent. This can be achieved by using the same average length of turn.
Lastly, it is crucial to use the appropriate tools. A professional winding resistance tester can help you determine the problems you are experiencing.
You can also rewind your motor to improve its performance. If the armature of your motor is damaged, you may need to replace it. Also, rewinding your motor can help you reduce the overall energy consumption and the environmental impact of your electric motor.
However, you should be careful not to change the level of magnetic flux. This is because the rewinding process will alter the condition of the magnetic core.
Finally, you can choose to increase the amount of wire area. Increasing the wire area will decrease the overall temperature of your winding and increase its life span.
One way to do this is to interleave the primary and secondary windings. You will need to stop the machine for this purpose. Depending on the machine, you may need to change the wire diameter.
In addition, you can also change the type of wire. For example, you can add enameled copper wire. These types of wire are excellent for molding. They are less expensive and offer greater heat transfer capabilities.
Lastly, you should consider the use of varnish. Varnish is a coating that protects the windings from contamination.
Application
The application of stepping motor for transformer coil winding machine is used to create secondary windings of electrical transformers. This is achieved through the combination of a driven spindle and a wire guiding nozzle. These two devices are coupled to each other with the aid of a flyer shaft.
A wire guiding nozzle is a device that guides the wire throughout the winding device. It is also used to guide and fix the end wire. The guiding nozzle can be controlled by three CNC axes.
A wire guiding nozzle is usually placed at a specific spot on the coil. This allows for precise tracking and a smooth flow. An inverse spiral motion of the guiding nozzle is used to guide and fix the end wire.
To wind a coil, a wire is guided through a guiding tube filled with copper or enameled wire. When the wire reaches the coil, it is wrapped around the coil body. It is then clamped.
The guiding wire consists of a twisted slot on the coil. This allows the guiding wire to be retained while the wire guides the rest of the wire.
Winding the coil is a series of turns that are bundled according to the phases. Partial winding of each phase must be insulated against the adjacent phase. Insulation paper is applied on the strands to insulate the conductors.
The insulated conductors are arranged axially in the winding space. Each layer is insulated by different elements. For high-frequency technologies, the wire is often flat or rectangular, allowing the conductors to connect in parallel.
The separating point is located near the post of the coil. It is important to keep the separating point as close to the post of the coil as possible. If the separating point is far away, it will impede the subsequent contacting process.
As the guiding wire guides the wire through the inter-spaces of the preceding layer, the location of the winding step can be determined. Depending on the type of coil bobbin, the winding step can occupy up to 60 degrees of the coil circumference.
When a round wire is used, there will be gaps. Ideally, the wire should enter the winding space in a flat angle. This avoids unnecessary bending and requires less space for the second winding step.
