Automatic Eight-axis Fishing Line Winding Machine

Power voltage:single phase AC 220V 50HZ Cop motor:three phase machine 400W(1/2hp) Winding displacement machine:step-servo motor Spindle motor:Brushless DC Numbers of cop:1 Windable wire gage:0.03-1.2mm
Maximum winding width:110mm
Maximum screw diameter:120mm

Send Inquiry

Description

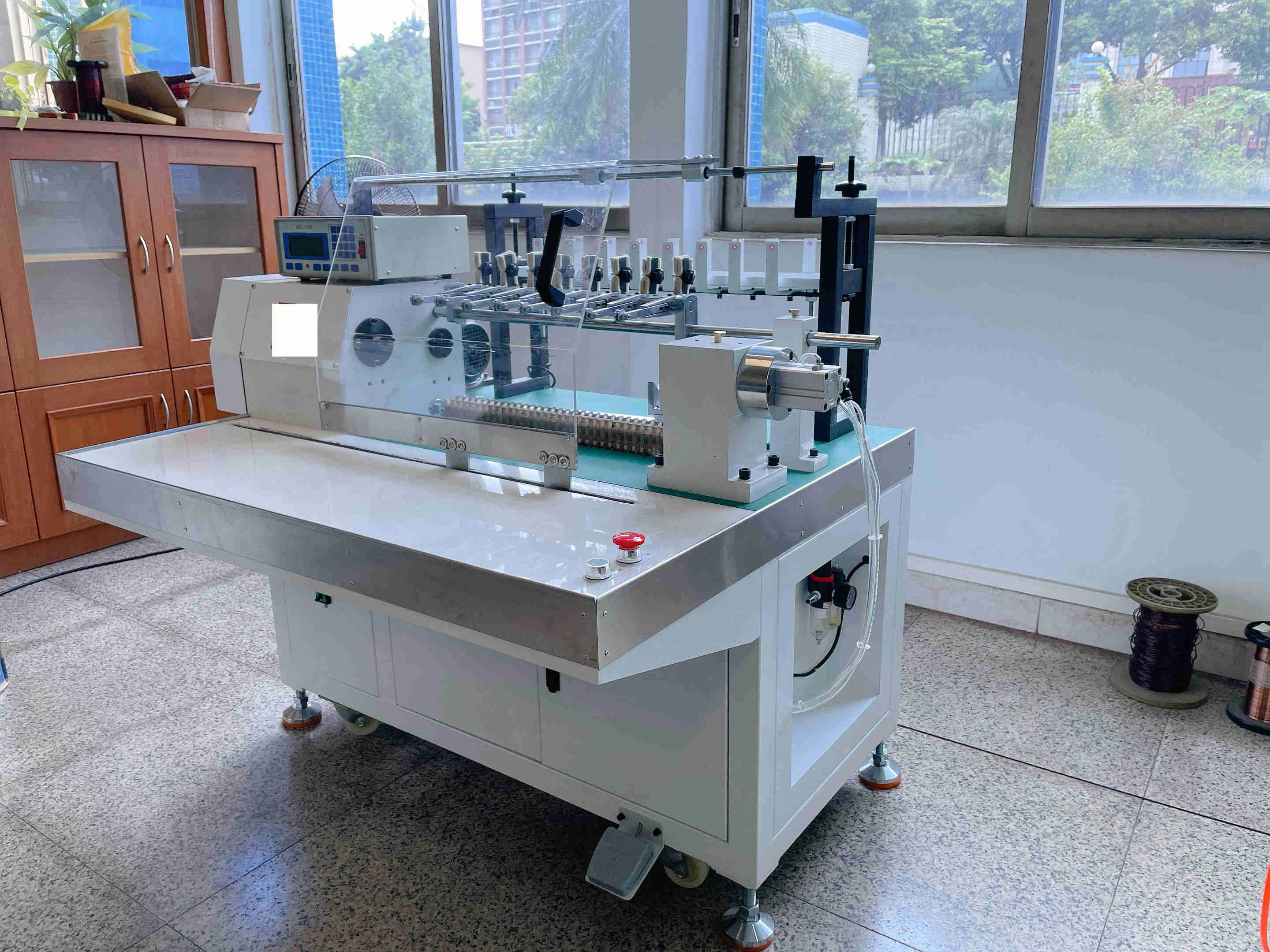

NAME: Automatic eight-axis fishing line winding machine (AESGW22-8)

Specifications：

Spindle number	8
Wire size range	0.1-0.5mm
Loop diameter	260mm
Max wire distance	9.99mm
Winder width	180mm
Max speed	0-3500 RPM
Spindle motor	Three Phase motor AC Drive
Winder motor	Stepping motor
Input power	220V 50HZ/60HZ
Machine size	1320×900×1320mm
Package size	1630×1050×1520mm
N/G weight	200kg/442kg

This automatic winding machine has a novel and streamlined design, simple and reliable, compact and reasonable structure, strong adaptability to the working environment, and high precision;

This series of winding machines adopts the latest version of high-performance whole machine software, touch screen real-time programming, user-friendly operation interface in teaching, English optional dialogue, easy and simple operation; password storage function to prevent unauthorized people from modifying the program, efficient High, easy maintenance, less failure。
