Big Torsion Transformer Bobbin Winding Machine
Spindles:1
Spread Motor:4-Phase stepping Motor
Wire diameter:0.5-3.0mm
Max Speed:1200rpm
Spread Pitch:0-9.999mm
Memory:999 Sequences
Description

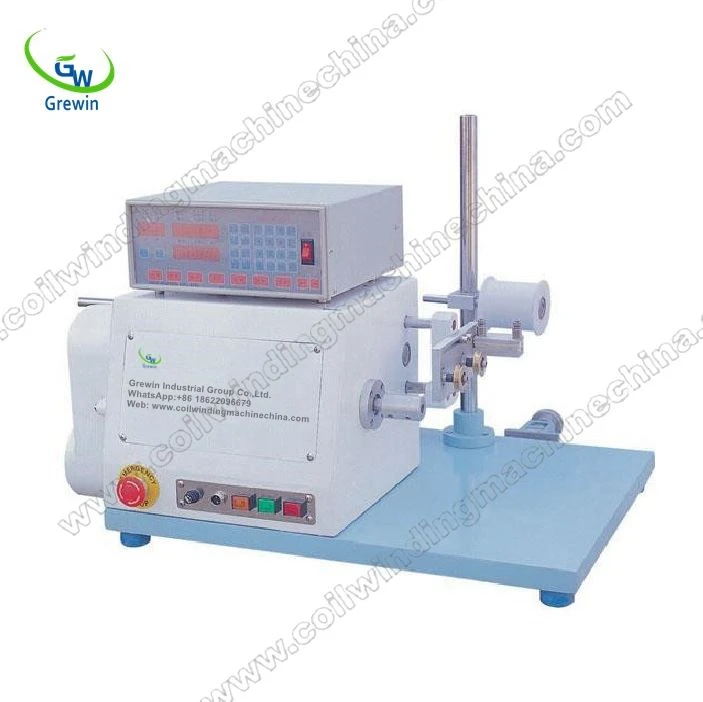

NAME： Big Torsion Transformer Bobbin Winding Machine （GW-9751）
SPECIFICATION:
Spindles | 1 | Spread Motor | 4-Phase stepping Motor |
Wire diameter | 0.5-3.0mm | Max Speed | 1200rpm |
Spread Pitch | 0-9.999mm | Memory | 999 Sequences |
Spread Width | 200mm（Max） | Power Source | AC 220V/110V±10%,50/60MHZ |
Winding Width | 200mm（Max） | Weight | 70×52×60 |
Main Motor | 1/2HP DC Motor | Dimension | 42 kgs |
This winding machine has a winding nozzle for guiding the winding of small diameter wires.
Constant current power supply drives stepper motor, high spreading speed and precise winding.
The "starting point" can be set via the keyboard or has a teach-in function.
The wire passes through the ceramic roller to prevent the high temperature of the enamel.
Foot switch connection, higher efficiency.
Winding parameters and options can be set independently for each step.
The memory capacity can accommodate 999 steps of parameters, and the memory is retained when the power is turned off.
