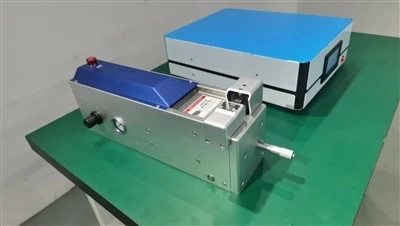

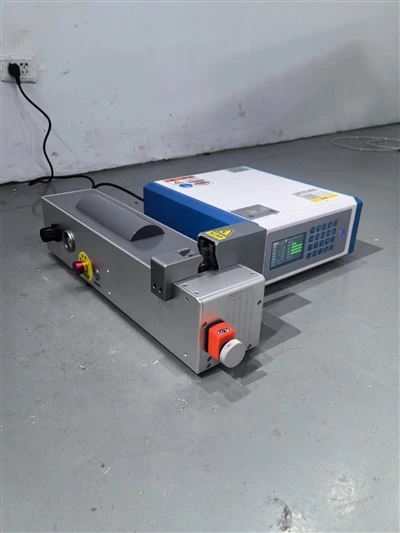

Ultrasonic Wire Welding Machine

SPECIFICATION:Main technical parameters table: (Unit: mm)

Model	GW-700
Display method	Touch display control and adjustment
Dimensions	electricalbox:453*300* 165mm frame: 517* 142* 181mm
Weight	25kg
Rated voltage	AC220V 50HZ
Welding range	0.35- 12mm2 copper wire, aluminum wire
Power	3000W
Productivity	About 0.6 seconds/time, according to the welding square







Features



1. Automatic frequency tracking ultrasonic generator, automatic amplitude compensation, stable power output, more reliable welding quality

2. Five protection functions: abnormal frequency protection, current protection, voltage protection. overload protection, over-temperature protection, etc, to enhance the service life of the equipment

3. Integrate the German FESTO pneumatic proportional valve control module, intelligently control the welding air pressure, and ensure the constant accuracy of the air pressure.

4. 7-inch color touch interface, multi-core system chip, the system responds more quickly.

5. Can store 99 sets of product welding schemes, support RS485, RS232, USB data transmission and export expansion.

6. Stable, efficient, fast and safe replacement of vulnerable parts, easy operation without maintenance





Packing

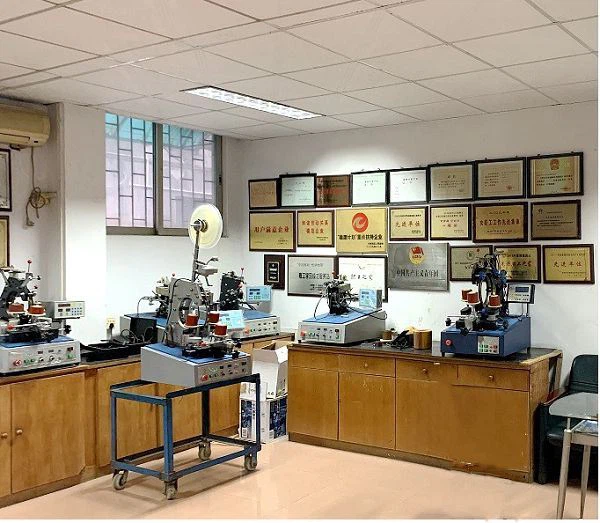

Factory
