Toroidal Transformer Wrapping Machine

High speed taping heads work with a belt drive system which enables them to work without gear racks, this enables the speed taping heads to tape into small internal diameters at a high speed.



The GW quick opening and closing system reduces handling time.



The loading and taping operation is fully automatic.



SPECIFICATION



Gear rack taping heads work with a gear drive system.The tape is first loaded onto the taping magazine and at the same time it is also taped onto the core.A flat leather belt which sits on the outside of the taping magazine controls the tape tension.the tape automatically is cut when the needed length or tape is loaded.



TAPING HEAD DATA	GW-80TB
BUILD UP FACTOR	+21
TAPE WIDTH	9-25MM
MAGAZINE DIAMETER	347MM
FINISHED CORE OD	60-350MM
FINAL ID WITH SMALLEST TAPE	30
FINISHED CORE HEIGHT	150
MAX TAPING SPEED RPM	80





PRACTICAL APPLICATION :



TRAINNING CUSTOMER TO OPERATE WINDING MACHNE :

1.All service engineers with 10 years experience are gotten special technology training, who can deal with various breakdown problem.

2.Guide the user to use accurately and how to maintain the Small Core Winding Machine.

Provide free consultation about production process technology of electronic products.

3.In order to guarantee the machine used normally, we'd have training on how to operate, use and maintain our product by English manual, video, guiding on line.

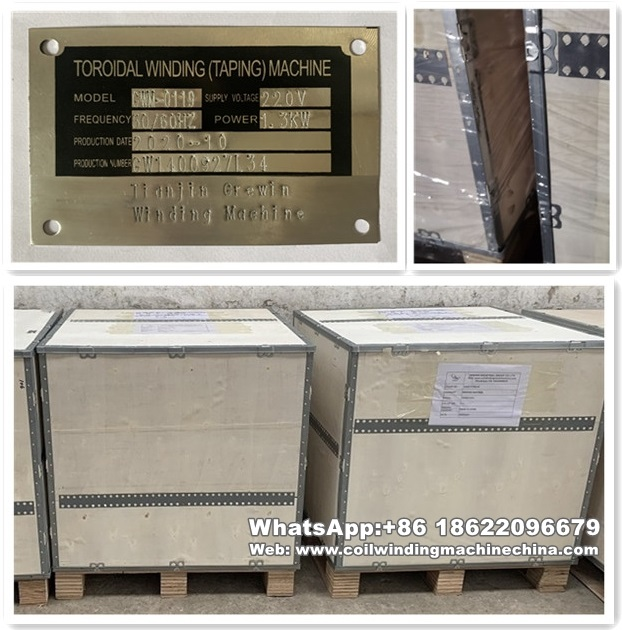

PACKAGING:





FACTORY:







video：
