Automatic Toroidal Inductor Taping Machine video

Automatic Toroidal Inductor Taping Machine

Model:GWL-500F or GWL-500T
Suitable winding bandwidth:10-12-15-20mm
Finally completed outer diameter:80-250mm or 120-320mm (Choose 1 from 2 fixtures)
Minimum finished inner diameter: 40mm (with 10mm storage ring installed)
Maximum finished height:130mm

Description

winding machine



  GWL-500F GWL-500T

Suitable winding bandwidth

10-12-15-20mm

Finally completed outer diameter

120-320mm

80-250mm

Minimum finished inner diameter

40mm (with 10mm storage ring installed)

Maximum finished height

130mm

Width of magazine

10-20mm (optional)

Magazine circumference

1070mm

Maximum winding speed

230 rpm

Presentable programs

50*20 groups (1000 running programs)

automatic transformer taping machine

automatic taping machine



If you are in the market for a toroidal inductor taping machine, you have the option to choose between a floor type and a desk type. Both of these options have their advantages and disadvantages, and ultimately the choice will come down to your specific needs and preferences.



The floor-type toroidal inductor taping machine is a larger and more robust machine that is designed to handle heavy-duty workloads. It is ideal for larger manufacturing facilities where space is not an issue. The floor-type machine is also designed to be more versatile, with the ability to handle a wider range of materials and sizes.



On the other hand, the desk-type toroidal inductor taping machine is a more compact machine that is designed to fit on a desk or workbench. It is ideal for small manufacturing facilities or for individuals who do not have a lot of space to work with. The desk-type machine is also simpler and more straightforward to operate, making it perfect for beginners.



Ultimately, both floor-type and desk-type toroidal inductor taping machines have their own unique benefits, and the choice between them will depend on your individual needs. Whether you need a machine for heavy-duty workloads or for small-scale manufacturing, there is sure to be a toroidal inductor taping machine that is perfect for you. So, don't hesitate to choose the machine that meets your needs and helps you achieve your manufacturing goals.



APPLICATION:

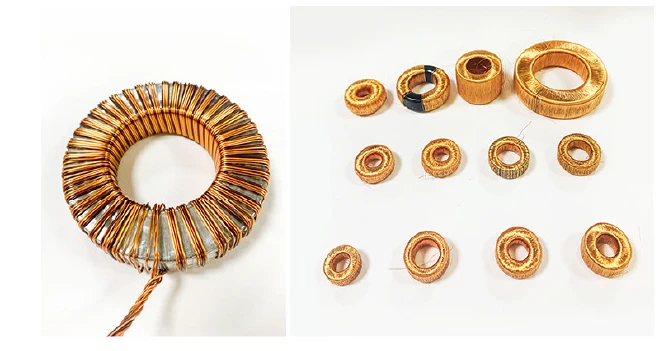

A Toroid Winding Machine is the best suited to toroidal inductors, toroidal transformers, toroidal current transformers, toroidal coils, toroid choke coils, power inductors, UPS inductors, converter inductors, and heavy toroidal core, etc.

winding machine

choke
