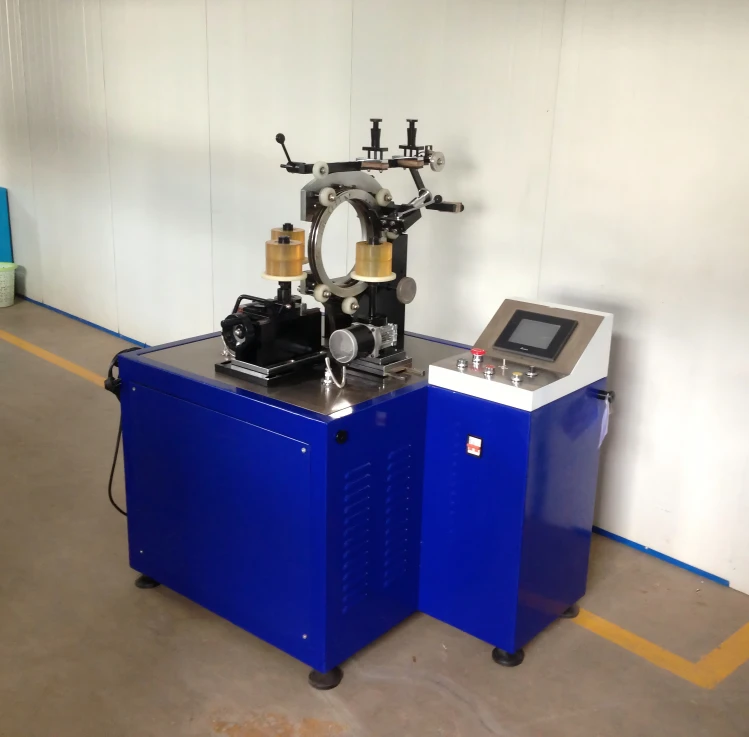

CNC Circular Winding Machine For Current Transformer

SPECIFICATION:

GW-F60-Y CNC winding machine for current transformer is the new qeneration of winding equipment according to the powe industry requirement and present manual winding technology current transformer

This machine adopts the international most advanced PLC system, it sets the procedures through the display screen so as to extremely strong the reliable operation of the whole machine. lts electric parts are desianed in modularization. Which can reduce the maintenance cost. The main driving operatioruses the frequency-conversion speed adiustment mode, which keeps the advantages of short driving chain. large startup torque, wide speed adjustment range, energy saving and low noise, The winding distribution adopts the stepping motor and high-precision reduction gear, which can solve the problem of traditional mechanical gear driving: error and uniform distribution.

Such winding distribution control is the breakthrough of circular winding machine,and can realize the continuous stepping stepless adjustment from 0.01mm, and bring the convenien adjustment, high distribution precision and large torque.

Due to PLC programming technology, it has the machine tool wire storage automatic computation,automatic counting, automatistop, stop memory and so on, and simplifies the operatiorareatly, This machine has the multi-wire winding mechanism which can realize the dual-wire or multi-wire multi-laver winding, so as to overcome the technoloay difficulty of multi-wire circula coils winding of precise current transformer and to improve the production efficiency and product quality.

To sum up, GW-F60-Y CNC winding machine for current transformer is featured with high precision, wide application range, reliable system operation, it is specially used for winding the circular coils of the small batch and many varieties. Therefore, it is the preferred device in the transformer industry and the domestic most advanced circular winding equipment.
