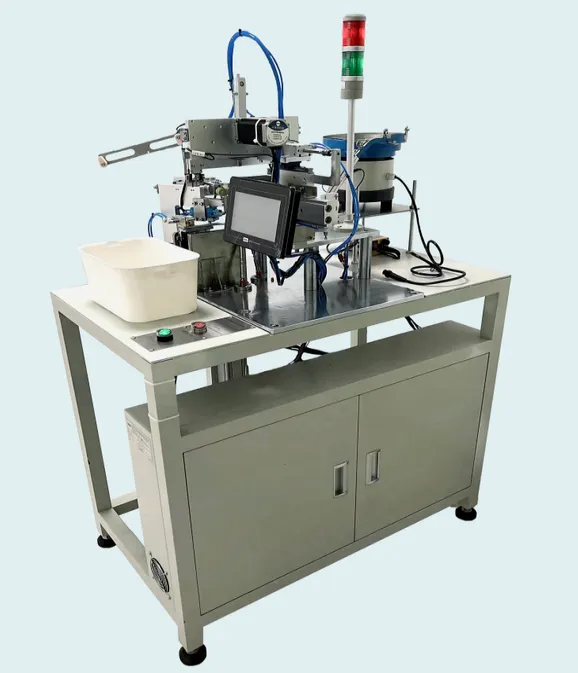

Fully Automatic Inductance Crochet Winding Machine



GW-800GZ Full Automatic Winding Machine



1. Equipment introduction

GW-800GZ winding machine is mainly for small magnetic ring inductance winding and can achieve single and double-wire winding, with high production capacity, stable performance, and high-cost performance characteristics.

2. Equipment installation

(1) After disassembling the device, check whether there is a binding tape in the rotating part of the machine. If so, remove it and plug it in.

(2)In order to ensure the service life of the equipment, the air pipe connected to the machine must be equipped with clean air pressure after oil-free filter water. To ensure that the solenoid valve and the cylinder have a service life.

(3)The power socket of the device must be connected to a ground cable to prevent lightning strikes or electric leakage.

(4) The intake air pressure of the device should reach 0.6MPa.



3. The equipment can be wrapped around the product parameters

NO.	Core size	Wire Length	Wire diameter	Capacity	Fitting requirement	Other Fitting requirement
1	9*5*3-16*9*5	400mm	0.3-0.7	0.9S/Turn	To replace the core specifications, replace the guide rails and clamps	If the wire diameter changes more than 0.2mm, need change the crochet model

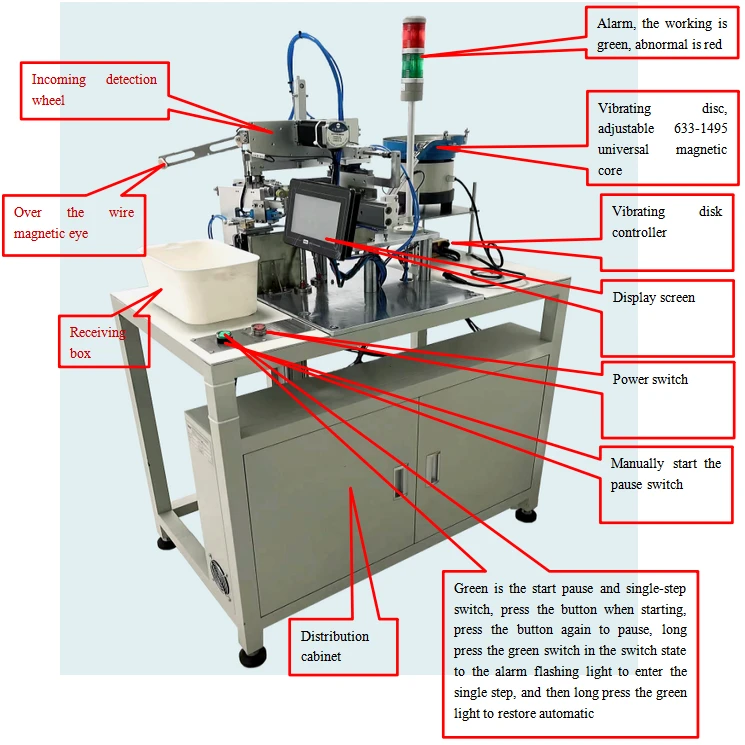

4. Machine Working Diagram





5. Equipment maintenance

(1) It is necessary to make the first inspection of the wound product every day to check whether the wound product has a bad or damaged line phenomenon.

(2) Every 10 days or so, 3-5 times anti-rust oil should be sprayed on the machine guide rail and slide block for lubrication.

(3) Regularly release the water in the filter connected to the outside of the machine, so as not to affect the service life of the cylinder and solenoid valve due to too much water in the gas pipe.

(4) Regularly clean the dust on the machine.

(5) When the machine is not in use, it is necessary to power off gas and dust protection.



6. Equipment parameters/Main accessories brand

No.	Serial Number	Parameter
1	Machine Size:	L1200*W600*H1350mm
2	Control system:	Independent research and development of a single board
3	Display:	DGUS
4	Power supply brand:	Mingwei
5	Motor brand:	Zhongzhida
6	Cylinder brand:	Star/Yadek
7	Induction line:	Jadek
8	Guide slide:	Silver/Yadek
9	Motor controller:	Zhongzhida
10	Equipment weight:	100KG



7. Packing list

No.	Name	Quantity	Unit
1	Device host	1	Set
2	8mm air pipe	1	Pcs
3	Quick gas connection	1	Pcs
4	Spare crochet hook	1	Pcs
5	With rubber wheels	10	Pcs
6	Down reel	3	Pcs
7	Receiving box	1	Pcs
