Liquid Surface Epoxy Resin Filling Machine

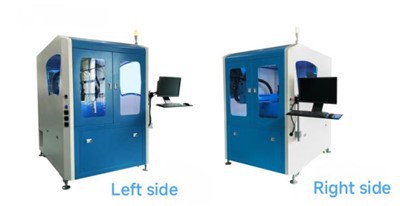

GW-900PM Epoxy Filling machine



Three-axis platform	journey	700mm ╳700mm ╳ 100mm
	Displacement speed	XY：250mm/s Z：100mm/s
	Displacement accuracy	≤±0.1mm
Two-component	Glue ratio	1 ：1 ---10：1(Adjustable within range)
	Glue output speed	1g/s --12g/s
	Glue dispensing accuracy	≤±1%
Program Inventory		99个
Operation method		Manual / Auto
Proportional control		PLC/Double cylinder plunger
Ratio/glue quantity control		Digital Input
Automation Control System		Touch screen/button switch/handheld programmer
Glue supply unit		Dynamic mixing/automatic cleaning
Storage barrel		Stainless steel barrel(A25L/B10L),Cleaning bucket(5L)
		Liquid level sensing (low level/high level)
		AB Glue barrel mixing
		Glue constant temperature heating (room temperature -80°)
		Automatic loading
		Vacuum degassing
		Glue Filtration
Input air pressure		0.4MPa-0.7MPa
Power supply		220V/50Hz/5000W
Dimensions		1500mm×1000mm×1500mm





As the demand for high-quality and durable epoxy resin products continues to rise, the need for efficient filling machines is becoming increasingly important. One of the most sought-after filling machines is the liquid surface epoxy resin filling machine, which offers precision and accuracy in filling applications. This machine has been designed to work seamlessly with viscous epoxy resin liquids, ensuring minimal wastage and high productivity. In this article, we will explore the various benefits of the liquid surface epoxy resin filling machine and how it can revolutionize the epoxy resin filling process.



Precision and accuracy

One of the most significant benefits of the liquid surface epoxy resin filling machine is its precision and accuracy. This machine has been designed to fill epoxy resin liquids with high accuracy, ensuring minimal wastage and maximum productivity. The machine's filling head is precisely designed to create a seal around the filling container, which prevents any spillages or leakage. This means that the epoxy resin liquid is filled precisely to the required level, which ensures consistent quality in each filling application.

Versatility

The liquid surface epoxy resin filling machine is highly versatile and can be used to fill a variety of different container sizes and shapes. This machine can fill containers with capacities ranging from 5ml to 20 liters, making it suitable for both small and large-scale filling applications. Whether you are filling small bottles or large barrels, this machine can handle the job efficiently and accurately.



Ease of operation

Another significant advantage of the liquid surface epoxy resin filling machine is its ease of operation. This machine has been designed to be user-friendly and easy to operate, even for novice operators. The machine comes with simple controls that allow operators to control the filling speed, volume, and other variables easily. This simplifies the filling process and ensures consistent quality in each filling application.



Minimal downtime

The liquid surface epoxy resin filling machine is built to perform at peak efficiency, ensuring minimal downtime and maximum productivity. The machine is highly reliable and can handle high-volume filling applications without interruption. This means that you can complete a large volume of filling orders in a shorter amount of time, which can significantly increase your overall productivity.



Improved product quality

The liquid surface epoxy resin filling machine ensures consistent quality in each filling application, ensuring that your product meets the required standards. With the machine's precision and accuracy, you can ensure that each container is filled with the correct amount of epoxy resin liquid, ensuring consistent quality in each batch of products. This can help you to build a strong reputation for high-quality products, which can lead to increased sales and profits.

Reduced labor costs

The liquid surface epoxy resin filling machine offers significant cost savings by reducing labor costs. This machine replaces manual filling methods, which can be time-consuming and labor-intensive. With this machine, you can automate the filling process, reducing the need for manual labor and increasing productivity. This can result in significant cost savings, which can be reinvested back into your business.



In conclusion, the liquid surface epoxy resin filling machine is an essential asset for any business involved in the production of epoxy resin products. With its precision, accuracy, versatility, ease of operation, minimal downtime, improved product quality, and reduced labor costs, this machine can revolutionize your epoxy resin filling process. By investing in the liquid surface epoxy resin filling machine, you can ensure that your business stays ahead of the competition while delivering high-quality products to your customers.



Category	Configuration	Quantity	Brand
Body	Basic frame-square steel pipe welding structure/sheet metal	1set	\
Three-axis motion platform	XY axis: synchronous belt, Z axis: screw	3 sets	TBI
	Stepper motor and driver	3 sets	Leisai/Research and Control
Control System	PLC Programmable Controllers	1 set	Panasonic Japan
	Software system	1 set	GREWIN
	Industrial human-machine interface touchscreen	2PCS	Kunlun Tongtai
	Pneumatic components (battery valve/pressure regulating valve/pneumatic duplex, etc.)	Several	AirTAC
	Electrical components (relays/contactors/power supplies/leakage switches, etc.)	Several	Chint etc.
Glue supply part	Stainless steel A/B/C Plastic buckets	3 sets	\
	Liquid level alarm	2 sets	\
	A barrel mixing	1 set	Han Chuang
	Double-cylinder plunger pump	2 set	GREWIN
	Metering pump motors and drivers	2 sets	Leisai/Research and Control
	Dynamic dual fluid valve	1 set	GREWIN
	Constant temperature heating	4 sets	Yudian
	High-quality Teflon tube	2 sets	\
	Vacuum Pump	1 set	Flyover
	Clamp/Glue head	1 set	GREWIN
