Toroidal Winding Machines: Belt-Driven vs. Side-Slip
I. Toroidal Core Winding Machine Mechanics & Working Principles
Semi-automatic winding machine, Belt-Driven Type:
The storage ring (shuttle/magazine) is driven by a reinforced belt that wraps around its outer diameter. Rotation is achieved through friction between the belt and the ring.
Semi-automatic winding machine Side-Slip Type (Slider):
The storage ring is often driven by gears or rollers, but it features a mobile slider (shuttle hook) that travels along the circumference of the ring to guide the wire.
II. Toroidal Core Winding Machine Mechanical Durability & Components

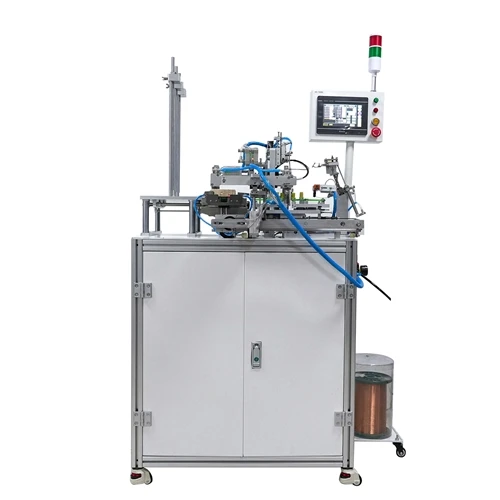

Automatic toroidal winder Primary Wear Parts:
Belt-Driven: The belt itself is the main consumable; it can stretch or fray over time.
Side-Slip: The slider/hook is the primary wear part due to constant high-speed friction against the ring.
Automatic toroidal winder Maintenance:
Belt-driven units require periodic tension adjustments, while side-slip units require frequent lubrication of the slider track.
III. Toroidal Core Winding Machine Wire Compatibility & Tension Control
Wire Gauge Range:
Belt-Driven of Coil winding Equipment :
Excellent for fine to medium wires. The drive is gentler on the wire's insulation.
Side-Slip Coil Winding Equipment: Built for heavy-duty tasks; it is the preferred choice for thick wires and large-diameter toroids where high torque is required.
Tension Precision for Coil Winding Equipment:
Belt-driven offers a "soft" tension, ideal for delicate ferrites.
Side-Slip provides "rigid" tension, ensuring tight layers on heavy industrial coils.
IV. Toroidal Core Winding Machine Performance & Efficiency
Transformer winding machine Speed: Belt-driven machines generally achieve higher RPMs because the belt system is lighter and creates less vibration at speed.
Transformer winding machine Noise Levels: Belt-driven systems are significantly quieter. Side-slip machines produce a distinct "clicking" or "sliding" sound as the slider moves.
Transformer winding machine Stability: Side-slip machines offer better stability when winding heavy-duty coils that might cause a belt to slip.
V. Toroidal Core Winding Machine Industrial Applications & Selection
Choose Belt-Driven For: High-frequency transformers, small sensors, and precision telecommunication components.
Choose Side-Slip For: Power transformers, voltage regulators, and large industrial inductors where wire diameter is a challenge.
