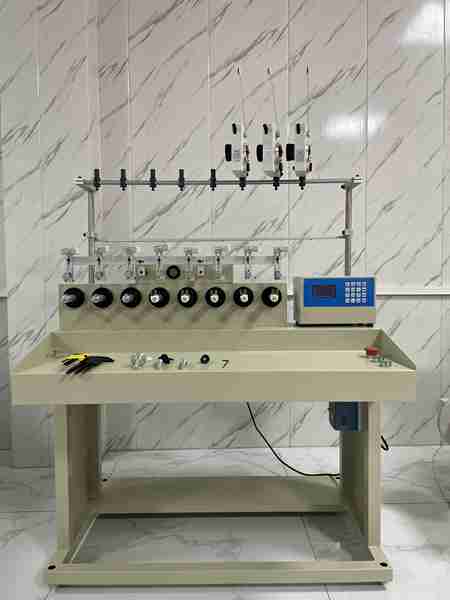

High-speed Eight-axis Automatic Winding Machine

Name:High-speed eight-axis automatic winding machine (GWP-08)

SPECIFICATION:

Main Component Description:

*The eight-axis spindle winding machine is widely used in small and medium-sized transformers, relays, precision coils, high-voltage wire packages, power adapters, ballasts and other products.

*Spindle winding machine adopts CNC controller, AC motor and stepper motor for precise motion execution, can be connected to multi-channel function control, and the application is stable.

*All information of the winding machine is taught by typing, the operation is simple and easy to learn, the equipment maintenance is convenient, the imported accessories are used, the process quality is controlled, and the equipment is stable and reliable.

*Change the program as needed to achieve multi-function, editing during pause, deceleration at both ends, counting mode, starting mode, speed limit and other functions.

*The advanced control circuit has strong anti-interference, overload-overcurrent protection, and adopts switching power supply control to adapt to the working voltage bandwidth.

*The model can be connected to the safety automatic stop control, and the position of the bobbin can be set with the follow function to assist the setting of the winding point and the width.

*0-999 groups of step sequence setting and storage, with variable frequency AC motor and precision stepper motor, can easily set forward and reverse, cross-slot and flow-density winding.
