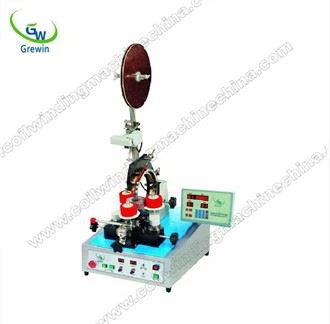

Full-Auto Stepper Motor Taping Machine
GWTM-850 fully sutomatic stepper motor taping machine
Tape width 8（10,12,15）
Max.winding speed 250 rpm
Max.final coil.O.D 45-200mm
Tape spacing Proportional linkage
Min.final coil.I.D 25mm
Supply voltage AC 220V（50Hz）
Max.finalcoil height 80
Mechanical dimensions 550*500*1100mm
Description
NAME：GWTM-850 Full Auto stepper motor Taping Machine
SPECIFICATION:
Tape width | 8（10,12,15） | Max.winding speed | 250 rpm |
Max.final coil.O.D | Φ45-200 | Tape spacing | Proportional linkage |
Min.final coil.I.D | Φ25 | Supply voltage | AC 220V（50Hz） |
Max.finalcoil height | 80 | Mechanical dimensions | 550×500×1100 |
Controller storage capacity Programs | 29 set | Weight | 100kg |
FEATURES:
1.The taping machine is quick and can be used with copper shielding tapes in widths ranging from 6 to 16 mm, or as specified, as well as polyester, polyimide, and aramide tapes.
2.To complete the task in the shortest amount of time, tape is automatically put onto the magazine, cut, and the winding speed is raised significantly.
3.The magazine may be quickly changed to meet various tape widths.
4.Pitch adjusting gears can be quickly exchanged as the stepper motor taping machine uses a special relay gear design.
5.The main spindle belt is made with a light weight to greatly minimize heat generated by the motor spinning in order to boost production volume.
6.To accomplish precise tapping and reduce screw damage,the fully automatic taping machine's construction is enhanced.
