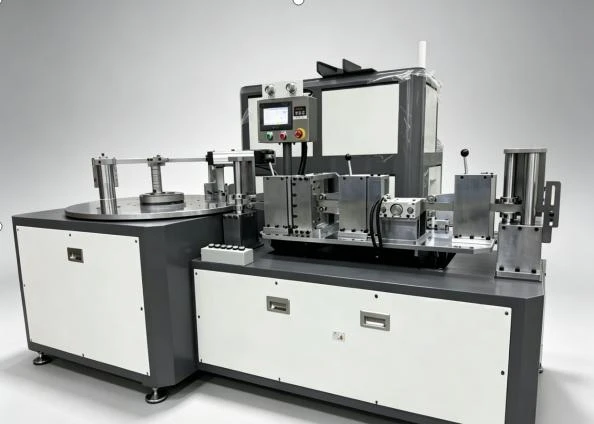

Horizontal Semi Automatic Core Winding Machine

CRGO Semi-Automatic Core Winding Machine





Semi-Automatic Silicon Steel Core Winding Machine Main Features

a. Material Guider: Material is vertically positioned for horizontal winding.

b. Tension Device: Pneumatic cylinder presses nylon blocks to generate tension; adjustable via pressure regulator.

c. External Encoder: -

d. Burr Trimming Unit: -

e. Cutter: Tungsten carbide cutting blades, blade driven by a pneumatic cylinder

f. Cutter Movement: -

g. Clamping Robotic Arm: -

h. Winding Spindle: Servo motor with position control and spinning function.

i. Spindle Push Plate: -

j. Unloading Robotic Arm: -

k. Pressure Arm: Pneumatic cylinder-driven roller arm for core winding, pressure adjustable via regulator.

l. Lower Pressure Arm: -

m. Decoiler: Single-Head Decoiler with manual expansion. Driven by a three-phase asynchronous motor with inverter speed control.

n. Welding Machine: -

o. Control System: Panasonic FP Control System with C-language programming.

p. Servo Motor: Panasonic A6 series pulse-type AC servo motor.

q. HMI Interface: HMI Touch Screen Monitor.

r. Electrical Cabinet: Integrated into the main unit.

s. Winding Function: Toroidal, Rectangular, O, R, Irregular, Steps, and Three-phase cores.





Horizontal Core Winder For Rectangular Transformer Core Specification:

No.	Item Category	Value
1	Equipment Model	GW700-200M
2	Equipment Power	12KW
3	Power Supply	3 Phase 380VAC 50Hz
4	Overall Dimensions	6000mm*1400mm*1600mm
5	Total Machine Weight	2000KG
6	Air Pressure	6kgf/cm²
7	Language	Simplified Chinese/English



Transformer Core Winding Machine Horizontal Type Key Product Parameters

No.	Item Category	Value
1	Max. Core Outer Diameter	Ø1000mm
2	Mandrel Diameter	Ø120-Ø980mm
3	Material Width	20-200mm
4	Material Thickness	0.18-0.5mm
5	Accuracy on Both Sides	< 0.5mm



Semi Automatic Core Winding Machine Price India Decoiler

No.	Item Category	Value
1	Max. Material Outer Diameter	1200mm
2	Expansion Range	450-508mm (Standard)
3	Max. Loading	1000kg
4	Max. Feeding Speed	250 m/min
5	Accuracy on Both Sides	< 0.5mm



Horizontal Core Making Machine For Transformer Configuration



No.	Item Category	Quantity	Brand
1	Panasonic FP Series Control System	1	6 sets of servo motors & 6 sets of stepper motors
2	Panasonic 5KW Servo Motor / Driver(Spindle)	1	3 pcs
3	Taiwan WEINVIEW 7-inch Touch Screen	1	11 pcs
4	SMC/AirTAC Pneumatic Components (Filters, Solenoid Valves, Cylinders, Regulators, etc.)	-	24 pcs
5	Friction Unit for Tension Device	1	1 pc
6	Japan NSK/KOYO Bearings	-	13 pcs
7	Panasonic or SICK Metal Sensor and Photoelectric Sensor	-	2 pcs
8	CheeMing 7.5KW Gear Motor and Reducer. (Decoiler)	1	220 V, 8 A
9	Delta 11KW Inverter (Decoiler)	1	5 pcs
10	Banner Ultrasonic Sensor(Decoiler)	1	2 pcs
11	Components in Control Cabinet(Siemens, Panasonic)	-	0.5-0.7 MP
12	Siemens Controls and Emergency Buttons	3	1 set
13	SUMWIC Full Function OS Software	-	2 sets
