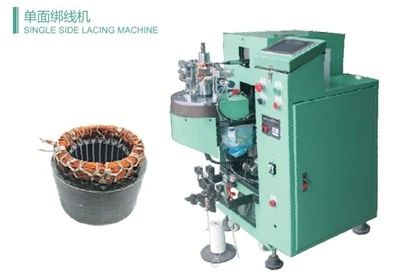

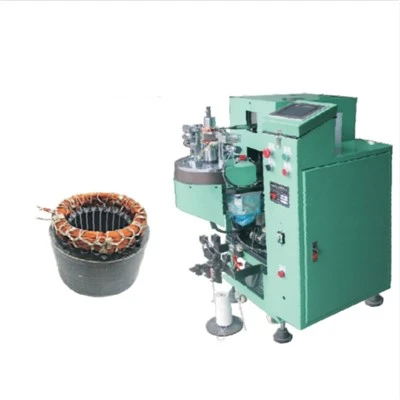

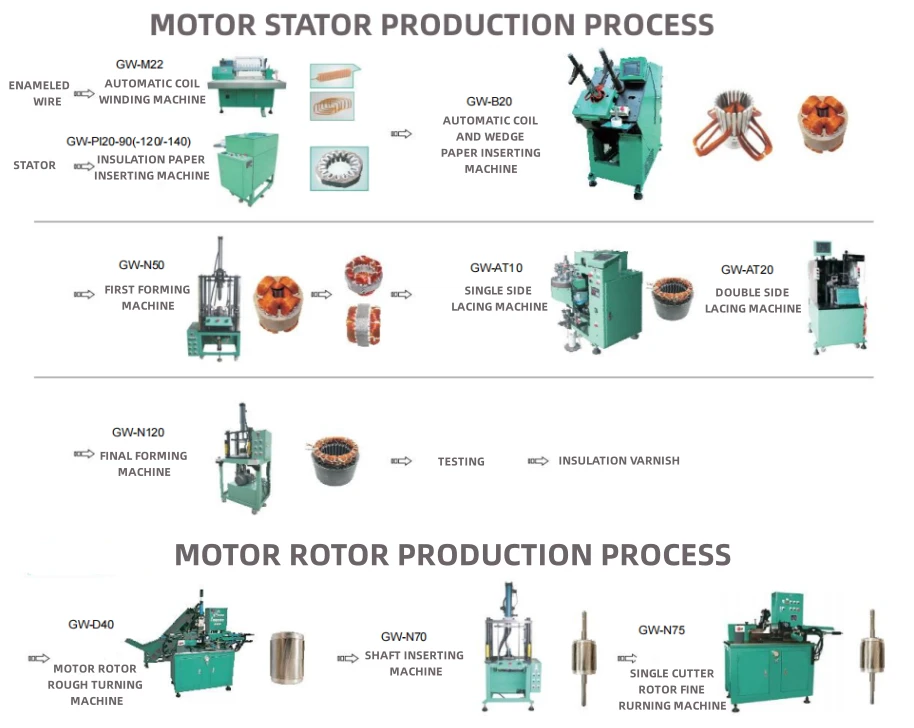

Servo Motor Single Side Stator Winding Lacing Machine

The stator winding lacing machine is provided with a main drive motor, a wire feeding mechanism, a stator table, a drive shaft for mounting the upper and lower crochet hooks, and a camshaft for controlling the upper and lower movements of the upper and lower crochet hooks respectively. The main drive motor drives the camshaft and the drive sprocket through the transmission assembly, and the Angle CAM drives the drive shaft through a curved rocker arm. The drive shaft is connected with the upper rocker arm and the lower rocker arm respectively connected to the upper rack and the lower rack, the upper and lower rack are engaged to connect the upper Angle gear and the lower Angle gear respectively, and the upper and lower Angle gear are connected to the upper and lower crochet hooks respectively. The invention has the advantages of improving the stability of the equipment during high-speed operation, reducing the cost of manufacturing and maintenance, reducing environmental pollution, and improving work efficiency.

Program features and advantages
① Perfect industry solution.
The device can automatically complete the stator double-head winding mode, the winding action is controlled by the electronic CAM synchronously, and the spindle speed can reach 280r/min at present.

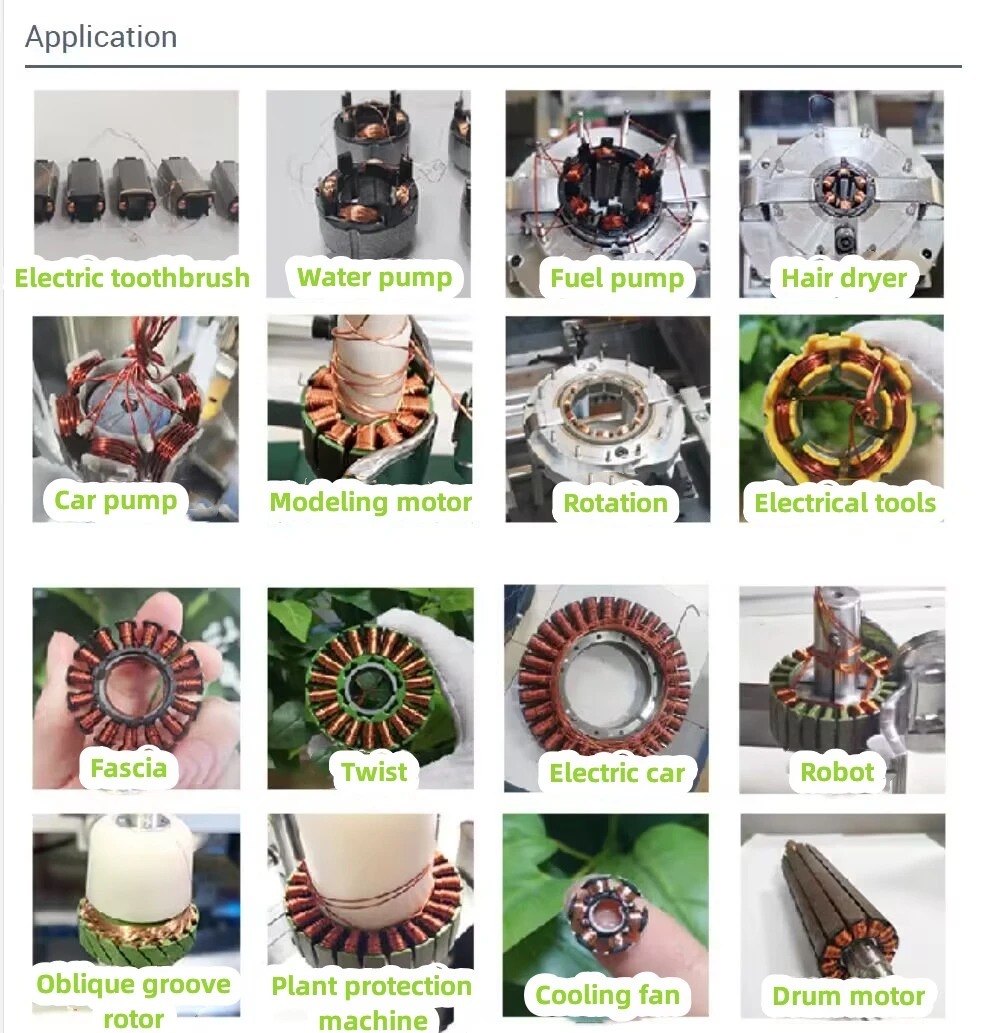

The fancy binding interface can realize slot binding, Angle binding, and sensitive switching, suitable for winding ordinary stators or special-shaped stators;
Pattern knotting function to prevent loose threads after finishing lines.
② Efficient control architecture
The logic and motion control of the stator double binding machine is realized by the DOP-100+M-R+B3-F+I/O module.
The whole system adopts DMCNET network communication control to ensure the synchronization of each ms operation cycle, to achieve accurate control and no electrical accumulation error;
The system is expected to have 100 groups of program management space, and each group of programs can realize the preservation of the specification parameters of the tying wire, which is convenient for users to quickly switch varieties.
③ Flexible process adjustment mode
Human body interface open step editing teaching interface, the user can freely edit the action order of the strap, according to the Angle of the spindle set the Angle of the needle movement, the adjustment process conforms to the humanized operation.
