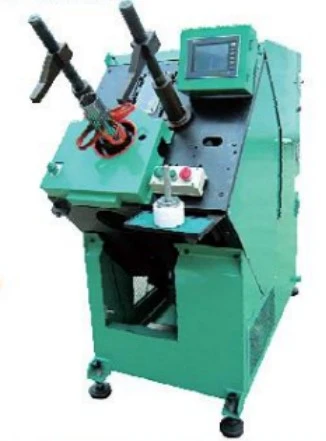

AUTOMATIC COIL AND WEDGE PAPER INSERTING MACHINE

Size：

1700*800*1700mm

Weight：

1050KG

STATOR OD：

Max 200mm

STATOR ID:

25-100mm

STATOR HEIGHT：

10-70mm，over 70mm is SPM

STATOR SLOTS :

8-36slots

WIRE DIAMETER:

0.09-0.75mm

SLOT FILL RATIO：

Copper ≤ 80%； CCA ≤ 75%; aluminium ≤ 70%

VOLTAGE：

3 phase 380V

SUITABLE FOR：

Copper/ aluminum/ CCA

FUNCTION：

This machine is used for motor stator colls and wedge paper automatic inserting.

SCOPE OF APPLICATION:

Suitable for washing machine motor, ac motor, pump motor, compressor motor, fan motor; etc

FEATURE:

1. Automaticlly inserting coils and wedge paperinto the stator slot at same time .

2. Tnrough hmi setting parameters ,automaticllyfeeding wedge paper as per requlrest lengthforming . cutting and pressing into the toolingwedee papar collector .

3. Machine body welding by steel plate stable

4. Change tooling easy and fast .
