Electric Fishing Line Winding Machine
Spindle number:1
Wire size range:0.05-1.0mm
Loop diameter:140mm
Max wire distance:9.9mm
Winder width:600mm、1500mm
Max. speed:0-1500RPM
Spindle motor:Three Phase motor+AC Drivers
Description
NAME:ACGW23-1B Electric fishing line winding machine
Specifications
Spindle number | 1 |
Wire size range | 0.05-1.0mm |
Loop diameter | 140mm |
Max wire distance | 9.9mm |
Winder width | 600mm、1500mm |
Max. speed | 0-1500RPM |
Spindle motor | Three Phase motor+AC Drivers |
Winder motor | stepping motor |
Max. winder diameter | 80mm |
Input power | 220V 50HZ/60HZ |
Machine size | 1130×450×450mm |
Package size | 1000×830×1110mm |
Net weight | 95kg |
Gross weight | 151kg |
Features:
Machine Feature:
Professional winding various long type coil, two side spindle synchionous fotation, stable and reliable. This machine design of 32 bit controller chip, I'll be faster and higher reliabity.
In Chinese and English display, easy to operation, winding data retention after power failure, not to discarded products. All the parts for this machine are imported prats,such as Japan Bearing (NSK, NTN), Japan BANDO belt, Japan GATES belt; Taiwan Ball screw (TBI), Taiwan Transducers and so on,
Main features:
Use high quality bearing steel, reinforced machine body, to ensure product stabilty
Pull lever tail stock design, operation more faster and convenient.
Adjustable wire shelt, to prevent loose wire.(Optional)
Application Range:
Mica sheet, heating wire, coil resistance and all the extended coil products.

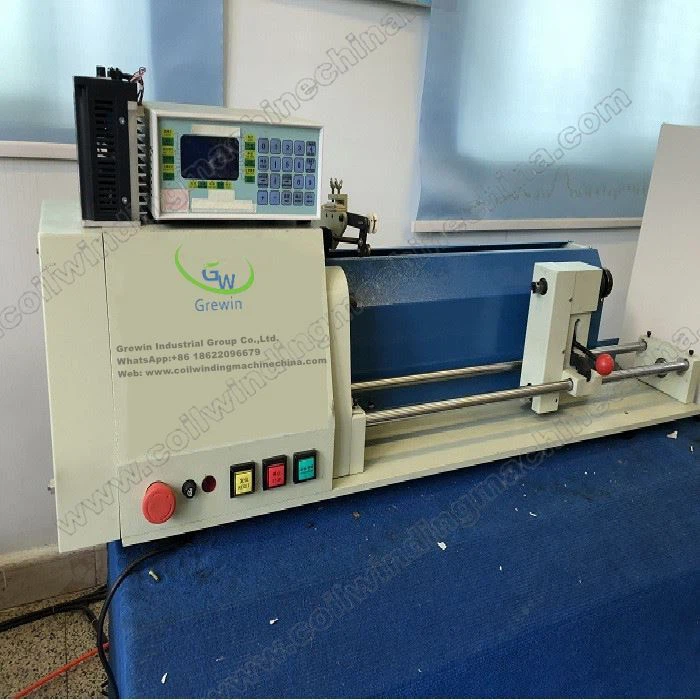

PRICTURE:
