Automatic Super Big Toroidal Winding and Taping Machine Ss1000wt

To provide more high-quality Digital Toroid Winding Machine, Belt Head Coil Winding Machine, Automatic Winding Machine For Transformer and perfect service is our tenet. We take honesty and trustworthiness as our basic business principle. Our mission is to build our products into a well-known domestically renowned and internationally influential brand that is respected and loved by others. Despite the changeable global economic situation, we will continue to unswervingly push forward the strategy of sustainable development. Our company is responsible for customers for a long time and has set up a special after-sales service maintenance team.

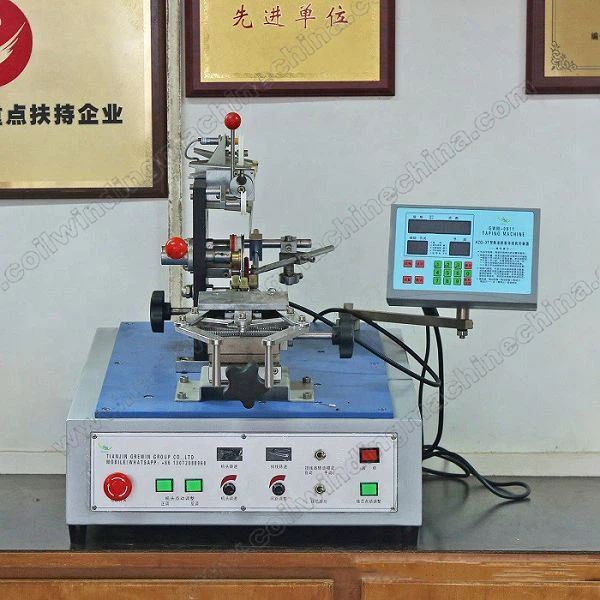

NAME：GWM-0911 Automatic Toroidal Winding Machine

SPECIFICATION

Wire diameter	0.05—0.20	Max.winding speed	800rpm
Max.final coil.O.D	φ60	Wire spacing	Proportional linkage
Min.final coil.I.D	φ6	Supply voltage	AC 220V（50Hz）
Max.finalcoil height	15	Mechanical dimensions	550×500×580
Controller storage capacity Programs	29 set	Weight	83kg



FEATURES:

Automatic Toroidal Winding Machine are fast machines for mass production of small inductive components.

Automatic Toroidal Winding Machine utilize slider heads and belt heads to accommodate a wide range of core sizesand wire diameters.

Main drive and core rotation of Automatic Toroidal Winding Machine are accomplished by powerful,long life AC motors and proportionally linkedvariable speed controllers.

Programmable stepper motor driven core rotation in either direction with minimum backlash.

Programmable wire spacing, from coarse to fine microstep resolution.

ADVANTAGES:

Complete range of articles, large range of wire diameter, Multipurpose

Good compatibility, parts are interchangeable

High stability, part quality guarantee

High production efficiency, no wire breaking at high speed winding

Automatic Toroidal Winding Machin is easy to operate, High learnability

A short period of delivery：10 days after receipt of payment

Warranty period 1 year

Enquiries can be quoted in one day

PRODUCT:

APPLICATION:

Toroid Winding Machine is the best suited to toroidal inductor, toroidal transformers,toroidal current transformers,toroidal coil, toroid choke coil, power inductors,UPS inductor,converter inductor and heavy toroidal core etc.

PRACTICAL APPLICATION :

TRAINNING CUSTOMER TO OPERATE WINDING MACHNE :
1.All service engineers with 10 years experience are gotten special technology training, who can deal with various breakdown problem.
2.Guide the user to use accurately and how to maintain the product.
Provide free consultation about production process technology of electronic products.
3.In order to guarantee the machine used normally, we'd have training on how to operate, use and maintain our product by English manual, video, guiding on line.

PACKAGING:

Packaging Material: Carton/Wooden case with foam inside.
1.General package(Paper carton or plastic bag): For small euipped parts for Toroidal Transformer Winding Machine , Package it with form and pack paper to guarantee unbroken during the transport.
2.Wooden case package: For larger scale Toroidal Winding machine ,we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock.

Below is the name of all listed accessories for the machine and construction diagram.

(Note:Different machines have different equiped parts)

FREQUENCY CONVERTER	IRON COUNTER
BIG GEAR RING	HAND RING GEAR
INTERFACE GEAR	MAINSHAFT GEAR
IMPORTED BEARING	WIRE PULLEY
WIRE GUIDER BASE	GREEN SWITCH
POTENTIOMETER	LEFT RIGHT SWITCH
TRANSDUCER PNP	COUNTER WIRE
CASE CIRCUIT BOARD	THE BOARD OF THE CASE BACK
CONTROLLER	TAPE CUTTER
BRAKE UNIT	WIRE GUIDE WHEEL
DISPLAY AND CONTROLLER FOR MAGAZINE ROTATION	WIRE GUIDE HOLDER
FOOT PADALS	PCB BOARD FOR FOOT PADALS
LEATHER BELT	LEATHER PAD
FAN	SPRING FOR TAPE

FACTORY:

We-GREWIN INDUSTRIAL GROUP is expert in winding machines lines for 28Years. Our Grewin have ISO9001:2015,CE approvals,Machines'Patents,"high-tech enterprises"by the government.

Our mission should be to turn out to be an innovative supplier of high-tech digital and communication devices by furnishing benefit added design and style, world-class manufacturing, and repair capabilities for Automatic Super Big Toroidal Winding and Taping Machine Ss1000wt. We promote the technological progress and scientific innovation of our company based on the importance of basic research and application. Our company is committed to establishing a perfect customer purchasing center based on the development strategic goal of 'customer first, brand service and standardized management', striving to provide customers with high-quality products efficiently and quickly and help customers control costs.
