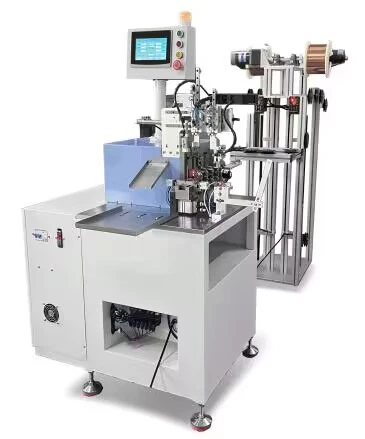

SQUC Automatic Flat Copper Wire Vertical Winding Machine

GWPC-870 SQ/UC automatic flat copper wire vertical winding machine

● The equipment adopts universal automatic blanking.

● Wire winding error alarm, wire blocking alarm.

●Dual-shaft high-power pay-off: maximum load 13 kg/shaft.

● Wire diameter applicable range 0.1-0.6mm thickness, width 0.6-2.0mm.

●Automatic universal blanking structure

Electric voltage: 220V

Power rate:800W-1000W

The machine size:1500×1000×1200mm

The production capacity: is about 800-1000 / hour special machine type is 1500 / hour

Equipment weight:180KG

●The product defect rate is less than 3 parts per thousand.

●Man-machine interface, fault automatic prompt, troubleshooting less than 5 minutes.

●Dummy module molding design, no need to change the machine debugging, switching machine within 30 minutes to complete.

●The symmetry of both sides of the product produced is good, and the circle diameter can be controlled within 0.02mm of the error.

●The single-head line change time is effectively controlled within 5 minutes,(the two-axis line change time is about 10 minutes) the operator can complete the line change and correction

Change the type of machine.

●Equipment maintenance is convenient, the operator can complete the usual maintenance and maintenance of the equipment, with ultra-low consumption cost (equipment consumption can be recycled repeatedly

Use).

●Program and equipment split design, can effectively avoid equipment 24-hour operation overload operation caused by machine failure maintenance.

●The transmission power adopts 8 axes simultaneous double combination imported servo motor transmission power precision feed step compensation structure design (the corresponding thrust is equal to 16 axes

Motor output).

Remark 1

Optional configuration: automatic feeding, the material does not grab alarm function, the material does not meet the standard alarm function, material error alarm function.
