Fully Automatic Air Core Coil Winding Machine With Soldering
Model:GWY - 550
Wire Diameter:φ0.7~2.5
Controller:8-inch Button Touch Screen
Lead Length Stroke:1–40
Number of Turns:0.5–60
Description

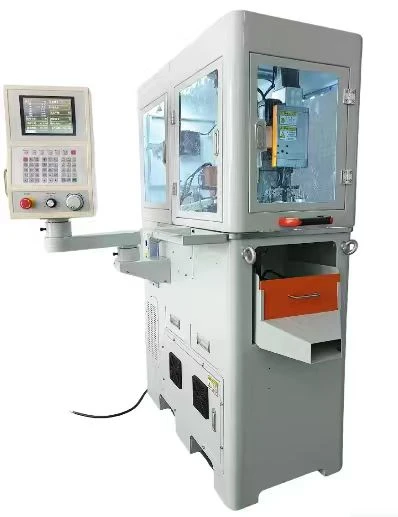

I .Main View
II. Main Technical Parameters:
|
Parameter Name |
Parameter Value |
Unit |
|
Model |
GWY - 550 |
- |
|
Wire Diameter |
φ0.7~2.5 |
mm |
|
Controller |
8-inch Button Touch Screen |
- |
|
Lead Length Stroke |
1–40 |
mm |
|
Number of Turns |
0.5–60 |
turns |
|
Winding Direction |
Clockwise & Counterclockwise Rotation Enameled Wire Air Core Coil Winding Machine |
- |
|
Wire Feeding Length |
0.5–120 |
mm |
|
Bending Angle |
0.1–359 |
° |
|
Bending Function |
Multi-lead bending available |
- |
|
Auxiliary Stroke for Multi-layer Wire Arrangement |
0.1–40 |
mm |
|
Camshaft Setting Value |
0.1–359.9 |
° |
|
Lifting Shaft Stroke |
1–40 |
mm |
|
Enamel Stripping Method |
Servo Rotary Stripping |
- |
|
Output Per Minute |
1~40 pcs (Actual speed adjustable per product) |
pcs |
|
Number of Servo Axes |
6 |
axes |
|
Wire Feed Servo |
0.4 |
KW |
|
Winding Servo |
0.75 |
KW |
|
Cam Servo |
0.9 |
KW |
|
Lifting Servo |
0.75 |
KW |
|
Solder Pot |
0.4 |
KW |
|
Auxiliary Servo |
0.4 |
KW |
|
Bending Servo |
0.4 |
KW |
|
Rated Power |
4.5 KW (Actual operating power approx. half the rated value) |
KW |
|
Voltage |
AC220V, 50Hz |
- |
|
Overall Dimension (Depth × Width × Height) |
1750 × 970 × 1550 |
mm |
|
Machine Weight |
550 |
Kg |
III ．Supporting Wire Feeder (GW-55)
IV ．Main Technical Parameters of Wire Feeder
|
Model |
GW-55 |
|
Load Capacity: |
1–60KG |
|
Power: |
0.37KW |
|
Voltage: |
AC220V, 50HZ |
|
Material Tray Diameter: |
φ680mm |
|
Wire Feeding Rotation: |
Clockwise & Counterclockwise |
|
Overall Dimension (Depth × Width × Height): |
480×480×560 mm |
V.Packaging:
Packaging Material: Carton/Wooden case with foam inside.
1.General package(Paper carton or plastic bag): For small euipped parts for Ho ok Type Transformer Winding Machine, Package it with form and pack paper to guarantee unbroken during th e transport.
2.Wooden case package: For larger scale Hook Type Transformer Winding Machine,we have special skilled carpenter, who would make the proper wooden case with exact thickness,dens ity,length. The up arrow ↑marked on the outer wooden case. Buffer material wo uld be put in the wooden case to prevent crack and shock.
