Fully Automatic Toroidal Transformer Winding Machine video

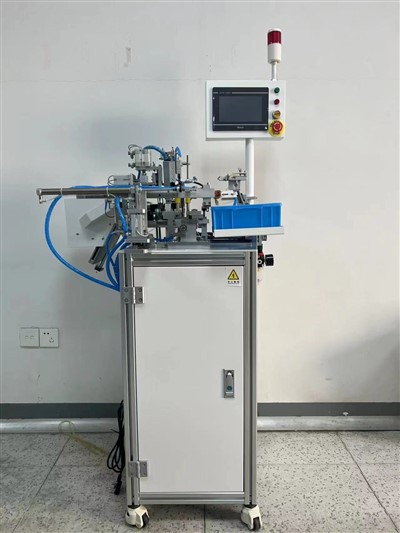

Fully Automatic Toroidal Transformer Winding Machine

Model:GW-7004
Maximum wire diameter: 0.2mm
Minimum wire diameter:0.05mm
Maximum finished outer diameter: 35mm
Minimum finished outer diameter:6mm
Maximum finished product height:20mm

Description

winding machine

Model

GW-7004

power supply

220V/110V 50/60HZ

Leakage current

20MA

Air pressure

0.6Kpa-0.8Kpa

Maximum wire diameter

0.2mm

Minimum wire diameter

0.05mm

Maximum finished outer diameter

35mm

Minimum finished outer diameter

6mm

Maximum finished product height

20mm

Line spacing control

Programming control

Sectional winding control

Programming control

Cumulative winding control

Programming control

Cable motor

Hybrid stepping motor

Main motor

servo motor

Winding speed

Adjustable, the fastest equipment is 1400rpm

physical dimension

1100mm*900mm*1700mm

weight

72kg

fully automatic winding machine

Fully automatic toroidal transformer winding machines are revolutionizing the way transformers are manufactured. These machines are equipped with state-of-the-art technology and precision engineering that make them an essential tool for manufacturers in the industry. They make the manufacturing process faster, more accurate, and cost-effective.



The benefits of fully automatic toroidal transformer winding machines are enormous. They eliminate the need for manual labor, which not only reduces the possibility of human error but also increases the overall efficiency of the manufacturing process. Additionally, the machines are easy to operate, requiring minimal supervision, which means that manufacturers can take on larger production orders without increasing their workforce.



Furthermore, fully automatic toroidal transformer winding machines are versatile and can be used to manufacture a variety of transformer types and sizes. They also offer flexibility in terms of customization, allowing manufacturers to fine-tune the winding process according to their specific requirements. This flexibility, combined with their precision engineering, makes them an essential tool for manufacturers looking to produce high-quality transformers that meet the stringent requirements of modern technology.



In conclusion, fully automatic toroidal transformer winding machines represent a significant step forward for the transformer manufacturing industry. Their precision, efficiency, and versatility make them an essential tool for manufacturers looking to keep up with the demands of the market. As technology continues to advance, fully automatic toroidal transformer winding machines will undoubtedly play an increasingly important role in the manufacturing process.
