Fully Automatic Single Station Toroidal CMC Hook Machine video

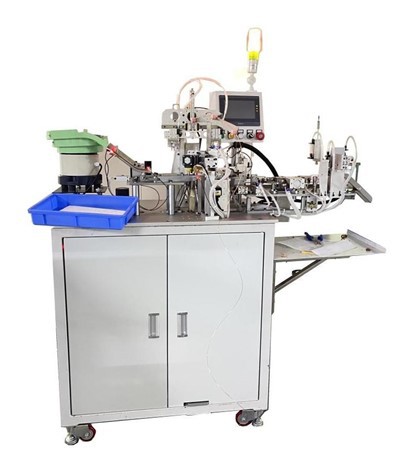

Fully Automatic Single Station Toroidal CMC Hook Machine

Model: GW-AM-080
Wire diameter: 0.25mm-1.5mm
Minimum and maximum processing dimensions of magnetic core: Inner diameter: minimum 4mm Maximum outer diameter: 25mm

Description

winding machine



GW-AM-080 Fully Automatic Single Station Toroidal CMC Hook Machine

Device model

GW-AM-080 Fully Automatic Single Station Toroidal Hook Machine

Minimum and maximum processing dimensions of magnetic core

Inner diameter: minimum 4mm Maximum outer diameter: 25mm

spindle maximum speed

3000rpm

AC servo motor

Winding spindle: 400W

Wiring motor/loading and unloading motor

57 steps/42 steps

wire arrangement angle

360 degrees per circle, setting unit is 0.1 degrees

Axis stopping accuracy

plus or minus 1 degree

Applicable magnetic core specifications

Maximum outer diameter: 25; Minimum inner diameter: 2; Maximum thickness: 12

Applicable wire diameter

0.25mm-1.5mm

wire arrangement

Front and back arrangement (can automatically pull out wire ends)

Axis movement amount

XB:150mm / YB:120 degree ZB/30mm

Axis moving speed

300mm/sec

control method

CNC 5-axis control board (independent research and development)

Storage method

RAM+FLASH storage, no data loss failure

voltage

Single phase three wire system

220V,50HZ

consume electricity

1.0KW

compressed air pressure

0.5-0.8MPa

Equipment size

1500mm(L)×800mm(W) ×1500mm(H)

equipment weight

200Kg



transformer

The fully automatic single-station toroidal CMC hook machine is a game-changer in the cable manufacturing industry. This machine offers a wide range of advantages for manufacturers, including high productivity, efficiency, and accuracy.



With this machine, cable manufacturers can produce high-quality toroidal CMC hooks without much hassle. This is because the machine comes with fully automatic functions that do not require any manual intervention. It is designed with the latest technology, making it more precise and revolutionary than its predecessors.



One of the notable features of this machine is that it is a single-station machine. This makes it very convenient to operate since only one person can comfortably manage it. The machine can produce toroidal CMC hooks in large quantities within a short time, which leads to increased productivity.

Fully Automatic Single Station Toroidal CMC Hook Machine

Besides, the fully automatic single-station toroidal CMC hook machine is designed to perform various functions simultaneously. For example, it can wind toroidal CMC hooks, feed wire from the spool automatically in an organized manner, and cut the wire to a specific length. This means that the manufacturer can produce a large quantity of hooks without any errors or delays.



Additionally, this machine is energy-efficient. It uses the latest technology to reduce energy consumption while maximizing its performance. This way, manufacturers can save on energy costs while still producing high-quality toroidal CMC hooks.



The fully automatic single-station toroidal CMC hook machine is also safer to use. It eliminates the need for manual intervention, reducing the possibility of accidents in the workplace. The machine is designed with sensors that detect any malfunctions and automatically shut down the system to prevent further damage or accidents.



In conclusion, the fully automatic single-station toroidal CMC hook machine is a revolutionary product in the cable manufacturing industry. It improves productivity, efficiency, accuracy, and safety. It is an investment that any manufacturer looking to produce high-quality toroidal CMC hooks should consider. With this machine, they can increase their production rate and reduce manual labor costs while maintaining the highest quality standards.
