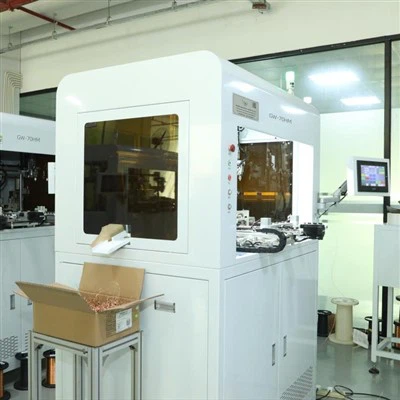

Robot Fully Automatic Differential Mold Winding Machine

NO.

Item

Details

Mark

1

Model：

GWA-110DM

2

Core O.D.：

30-45mm

3

Core I.D.：

Within 10mm

4

Wire diameter：

1.0-2.5mm

5

Single station winding wire length：

within 4000mm

6

Winding speed：

One product in 90 seconds, two products at a time 80pcs/H

7

Winding method：

Conventional winding

8

Power：

220V/50Hz Single-phase AC

9

Air source：

0.55Mpa-0.60Mpa

10

Noise：

60 db

11

Machine power：

3KW

12

Equipment energy consumption：

0.55°/ h

13

Ambient temperature:

-5°C~40°C

14

Relative humidity：

(40～90)%RH

15

Overall pass rate：

99.5%

16

Machine size：

1750mm * 1150mm*2150mm

17

Machine weight：

500KG

No.

Name

Brand

Unit

Quantity

1

Equipment cover sheet metal parts

Non-standard Custom

SET

1

2

Machined Parts

Non-standard Custom

SET

1

3

Magnetic ring feeding vibrating plate,belt line part

Non-standard Custom

SET

1

4

Guide rail screw

Top Silver

SET

1

5

Servo motor

Inovance

SET

6

6

Pneumatic Components

Airtac

SET

1

7

PLC

Xinjie

SET

1

8

Touch Screen

Xinjie

SET

1

9

Photoelectric Sensor

OMRON

SET

6

10

Design and processing cost of magnetic ring fixture

Non-standard Custom

SET

1

11

Software System

Non-standard Custom

SET

1
