Alternating Winding Machine

Spindle number:10
Wire size range:0.1-0.55mm
Loop diameter:Φ75mm
The max wire spacing:9.99mm
Winder width:75mm
Max speed:0-4500 RPM
Spindle motor:1.5KWAC motors

Send Inquiry

Description

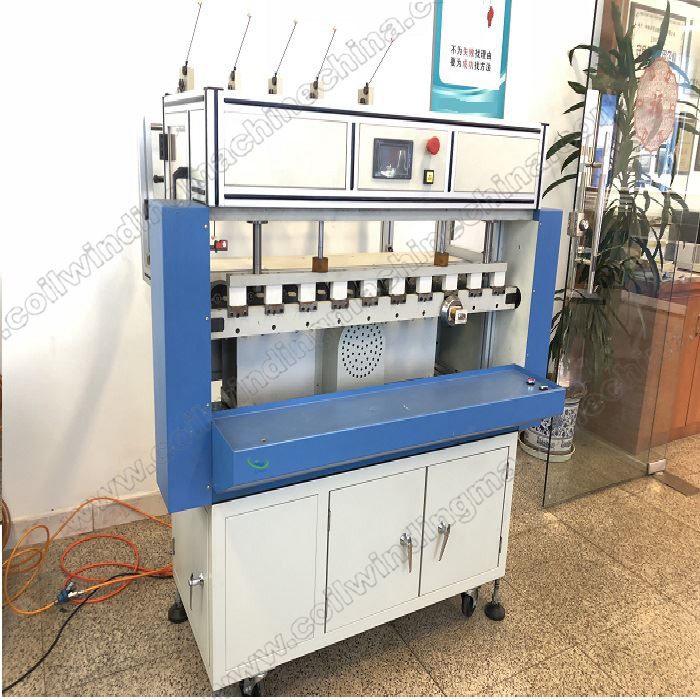

NAME: Alternating Winding Machine（AAGW210-10）

Specifications：

Spindle number	10
Wire size range	0.1-0.55mm
Loop diameter	Φ75mm
The max wire spacing	9.99mm
Winder width	75mm
Max speed	0-4500 RPM
Spindle motor	1.5KWAC motors
Winder motor	Stepping motor
Control mode	PLC and stepper motor drive system
Winder direction	Adjustable at both ends
Input power	220V,60/50Hz
Machine size	1480×900×1580mm
Package size	150090150mm
Weight	219kg

Features：

1. Ten-station manual loading and unloading, ten-station AC winding machine.

2. Driven by imported servo motor

3. The English touch screen of this winding machine is easy to operate

4. The winding machine adopts high-speed control, uniform winding and high stability

5. The frame of this winding machine is made of thickened precision aluminum profiles, and the platen is made of cast iron to absorb vibration, even when winding at high speed, the vibration is very small.

Machine maintenance:

1. Clean up waste wire and debris when you leave the office each day.

2. Lubricate and prevent rust of the moving parts of the machine every week.

3. Perform a comprehensive cleaning of the machine once a month and tighten the screwdriver. The moving parts of the back cover of the machine should be cleaned, oiled and rust-proof. Check that the origin sensor is clean and free of dirt and that the coupling is tight.
