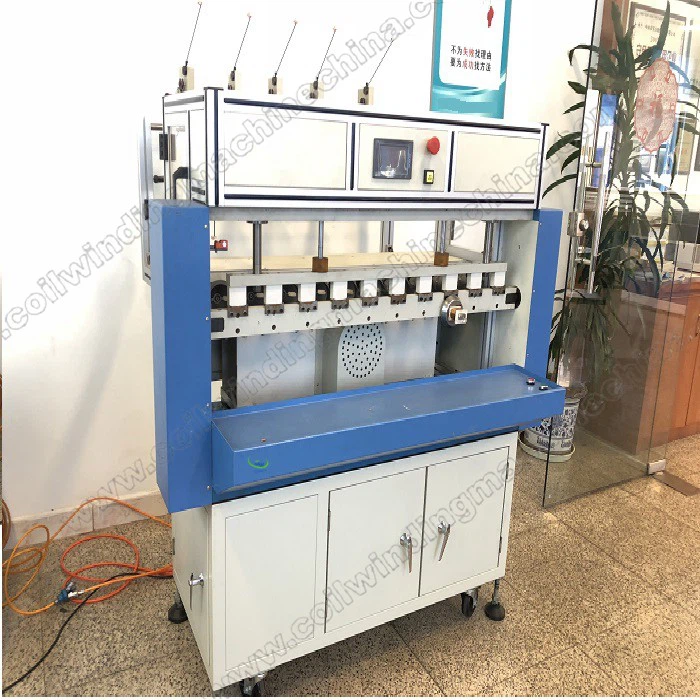

Fully Automatic Boobin Type Winding Machine

Spindle number:10
Wire size range:0.1-0.55mm
Loop diameter:Φ75mm
The max wire spacing:9.99mm
Winder width:75mm
Max speed:0-4500 RPM

Send Inquiry

Description

NAME:Fully automatic boobin type winding machine (AAGW210-10)

Specifications：

Spindle number	10
Wire size range	0.1-0.55mm
Loop diameter	Φ75mm
The max wire spacing	9.99mm
Winder width	75mm
Max speed	0-4500 RPM
Spindle motor	1.5KWAC motors
Winder motor	Stepping motor
Control mode	PLC and stepper motor drive system
Winder direction	Adjustable at both ends
Input power	220V,60/50Hz
Machine size	1480×900×1580mm
Package size	150090150mm
Weight	219kg

1. The winding machine adopts microprocessor design, which is easy to program and set.

2. This winding machine is a stepper motor driven by a constant current power supply, with fast spreading speed and accurate winding.

3. The "starting point" of the winding machine can be set through the keyboard or has a teaching function. The display shows the position of the spreading head during setup.

4. Nozzle spreading head spreading.

5. The wire passes through the ceramic roller to prevent the high temperature of the paint film and protect the wire insulation film.

6. Multi-axis synchronous winding, the highest efficiency.

7. Foot switch connection, higher efficiency.

8. Winding parameters and options can be set independently for each step.

9. The memory capacity can save 999 step parameters, and the power will be remembered.

10. Automatically twist the wire according to the set procedure.

11. Provide 0 to 99 twisting speeds.

12. Automatically diagnose machine faults

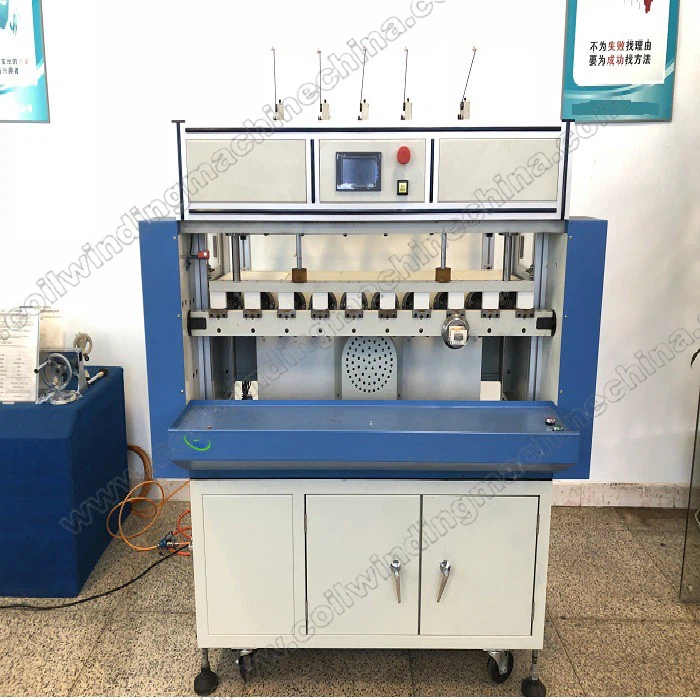

coil winding machine (2)
