Slider Tranformer Core Winding Machine

SPECIFICATION:
Wire diameter： 0.05—0.12
Max.winding speed：800rpm
Max.final coil.O.D：φ30（80）
Wire spacingProportional linkage Min.final coil.I.D：φ5
Supply voltage：AC 220V（50Hz）

Send Inquiry

Description

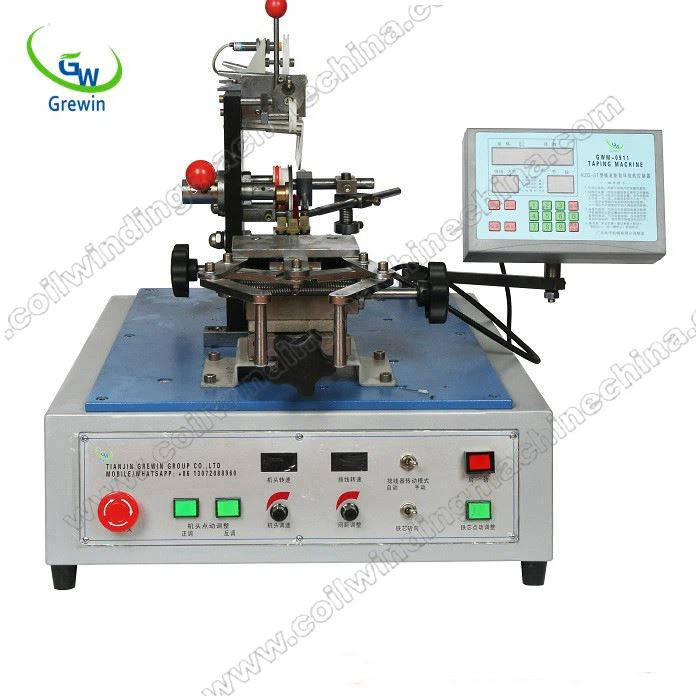

NAME：Slider Tranformer Core Winding Machine （GWM-0910）

SPECIFICATION:

Wire diameter	0.05—0.12	Max.winding speed	800rpm
Max.final coil.O.D	φ30（80）	Wire spacing	Proportional linkage
Min.final coil.I.D	φ5	Supply voltage	AC 220V（50Hz）
Max.final.coil height	15	Mechanical dimensions	550×500×580
Controller storage capacity Programs	29 set	Weight	83kg

FEATURES:

1. Slider Tranformer Core Winding Machine adopt Taiwan technology controller to run stably;

2. The multi-function microcomputer design data is easy to set, permanently saved and has automatic speed limit and pause editing, both ends deceleration functions, etc;

3. The program can be changed as needed to realize the multi-stage speed and multi-line path function, and the power supply circuit adopts the modified LCR filter with strong anti-interference ability;

4. The setting of the cable axis is debugged using the teaching function, which can assist the positioning of the starting point and the ending point;

5. The coil is wound flat, the wire diameter deformation is small, and the coil induction output fluctuation is small.

ADVANTAGES:

Complete range of articles, large range of wire diameter, Multipurpose

Good compatibility, parts are interchangeable

High stability, part quality guarantee

High production efficiency, no wire breaking at high speed winding

The Slider Toroid Coil Winding Machine is easy to operate, High learnability

Accessories general, easy to exchange

A short period of delivery：10 days after receipt of payment

Enquiries can be quoted one day service
