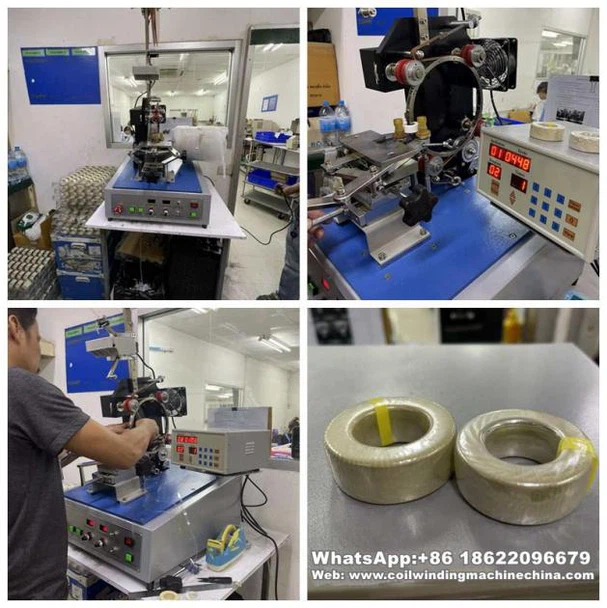

Automatic Small Toroidal Transformer Coil Winding Machine

SPECIFICATION:

	mm	Inch/AWG
Single Wire size	0.5-4.5mm	5-26
Double wire size	2*2.8	2/91/2
Minimum finish inner diameter	From 25mm	From 1.0mm
Maximum completion height	Up to 380mm	Up to 14.96
Maximum finish outer diameter	65-1200mm Interchangeable fixture	2.55-40

Brief technical description:



The GWP-F60 chassis is a floor-standing heavy-duty chassis specially designed for large magnetic cores and thick wire diameters. It has stronger power and a wider range of adaptability. It uses PLC control and a touch screen display interface, and can be applied to a variety of machines. heads and clamps.



This product is composed of standard components, including: electronic controller, machine head servo motor, clamp stepper motor (servo can also be control). Users can easily edit text commands into the controller software.



GWP-F60 is mainly used for tape wrapping and winding of some difficult product specifications.





Technical Parameters：



1.Controller:

PLC controller



2.show:

7-inch touch screen monitor



6.Winding speed:

Up to 120 rpm

Independently changeable storage line speed

Independently changeable winding speed



7.Core drive:

Stepper motor 0.8KW/3.3Nm



8.Line distance control:

Automatically change line spacing

Can be designed for changes as small as 0.001



9.Core idling and reverse control:

Fully automatic



10.Acceleration and deceleration:

Fully automatic



11.stop:

Fully automatic



12.Winding control:

Fully automatic



13.Taping operation:

Fully automatic



14.Machine head drive:

Servo motor 2KW/8.6Nm



15.Voltage supply:

220V, 50HZ



16.Machine dimensions and weight:

1100 x 100 MM, 600 KG NET, 700KG GROSS



PRACTICAL APPLICATION :



TRAINNING CUSTOMER TO OPERATE WINDING MACHNE :



1.All service engineers with 10 years experience are gotten special technology training, who c an deal with various breakdown problem.



2.Guide the user to use accurately and how to maintain the Hook Type Transformer Winding Machine.Provide free consultation about production process technology of electronic products.



3.In order to guarantee the machine used normally, we'd have training on how to operate, use and maintain our product by English manual, video, guiding on line.
