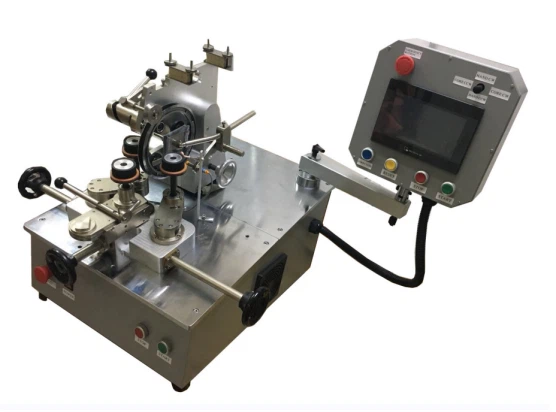

Mini Transformer Core Toroidal Winding Machine





Wire diameter：	0.3-1.0mm
Minimum finish inner diameter：	10mm
Maximum completion height：	55mm
Maximum finish outer diameter：	25-150mm
Max speed：	1600rpm
Magazine diameter：	150mm

GWS-500  Slider toroidal transformer winding machine



The world of toroidal winding machines is rapidly evolving, with more advanced machines being released each year. As companies move towards automation to increase efficiency and productivity, the role of PLC toroidal winding machines becomes even more critical. These machines use programmable logic controllers (PLCs) to control the winding process, ensuring precise and repeatable results.



However, it's important to remember that operating a PLC toroidal winding machine requires a particular set of skills and knowledge. Before operating the machine, it is essential to undergo proper training, understand the various components of the machine, and be aware of the potential hazards.



Here are some precautions to take when operating a PLC toroidal winding machine:



Safety first



Safety is always a top priority when operating any heavy machinery, and PLC toroidal winding machines are no different. Before operating the machine, ensure that all safety guards and mechanisms are in place and working correctly. Operators should wear appropriate safety gear, including gloves, protective clothing, and eyewear. It is crucial to avoid wearing loose clothing or jewellery that could get caught in the machine.



Careful handling



Handling the toroidal core during the winding process requires extreme care. The core can easily be damaged if dropped or handled roughly, which can result in the machine's malfunctioning. To avoid any damage to the core, make sure that the handling equipment is in good working condition and that you follow the manufacturer's recommended handling procedures.

Proper winding techniques



The success of the winding process depends on proper winding techniques. Always ensure that the wires are neatly wrapped around the core and are not overlapped. Overlapped wires can result in short circuits, which can damage the machine and cause safety hazards. It's crucial always to follow the manufacturer's guidelines when winding wires.



Regular maintenance



Regular maintenance is critical to ensure that the machine operates without any interruptions. Before operating the machine, check for any loose or broken components and tighten them as necessary. You should also inspect the cables and wires regularly and replace any that are damaged. Regular maintenance minimizes the chances of the machine malfunctioning during operation.



Routine checks



Even the most advanced machines can develop problems over time. Routinely checking the machine's functionality can catch a problem that may have developed. It is essential to check that all the settings on the machine are working correctly. Even the slightest issue with the machine settings can result in a high defect rate during production.



Final Thoughts



In conclusion, safety and proper handling of the machine are critical when operating a PLC toroidal winding machine. Proper training, regular maintenance, and following the manufacturer's recommendations are essential to achieve desired results that can meet industry standards. By taking the necessary precautions, operators can protect the toroidal core and their safety while maintaining production efficiency.
