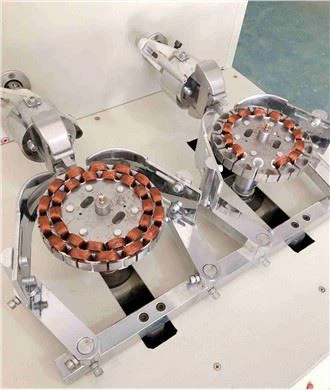

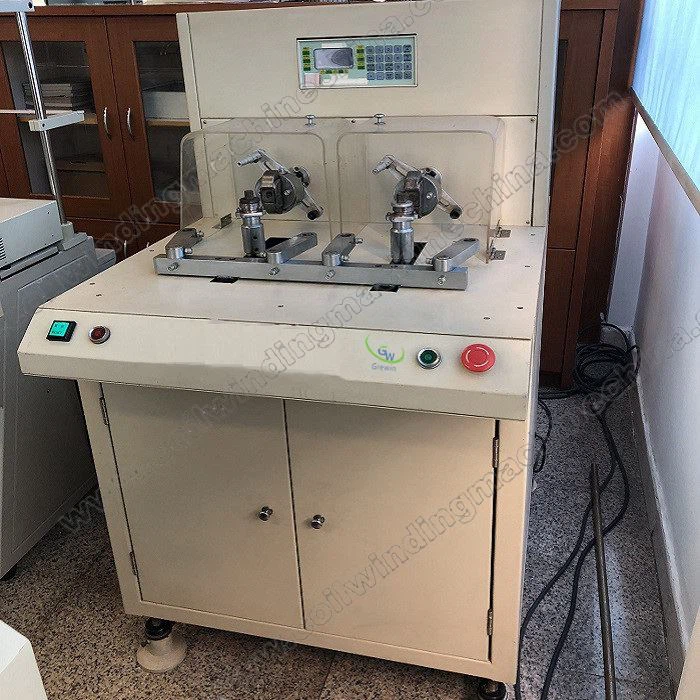

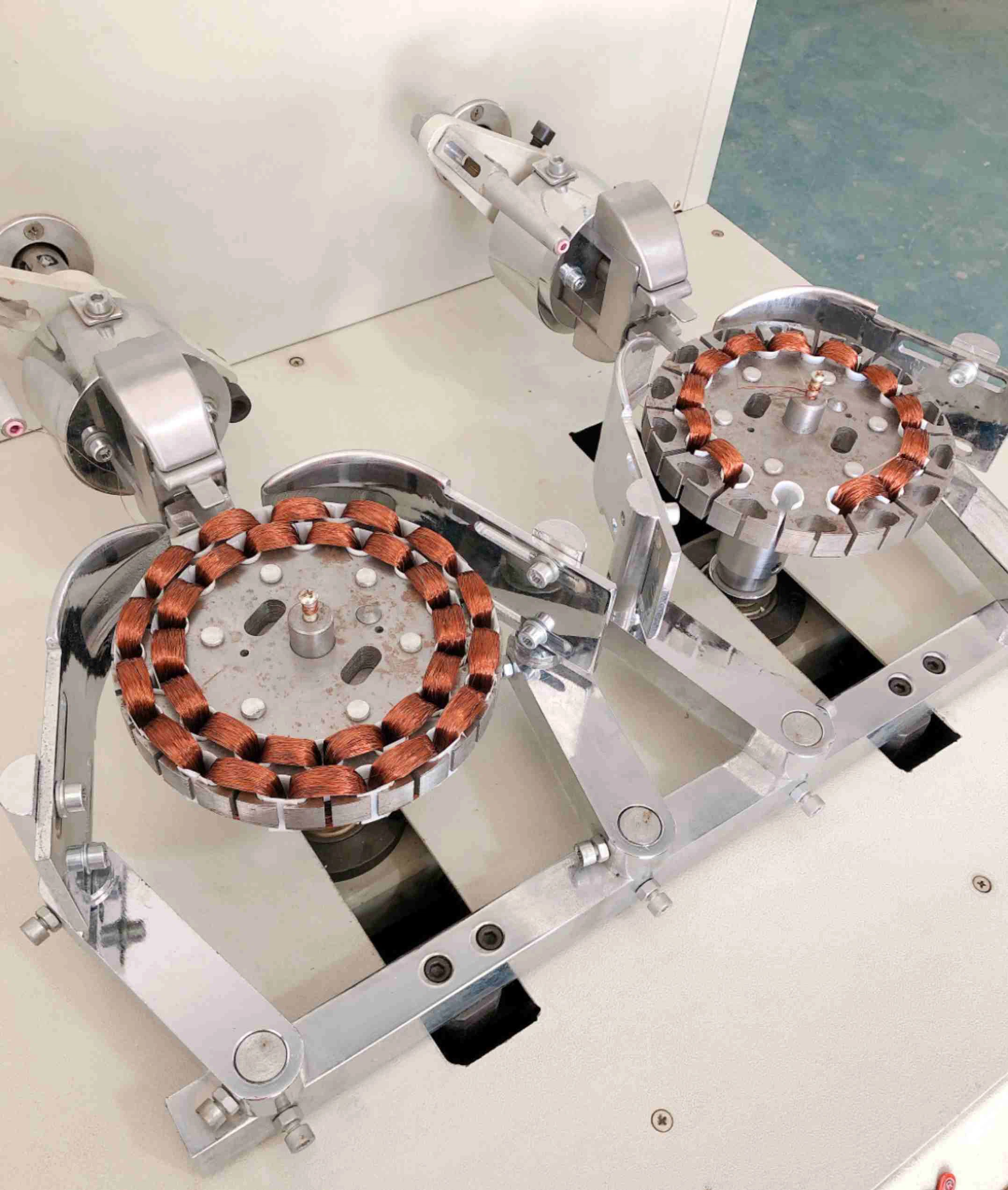

Motor Ceiling Fan Stator Winding Machine

NAME:ADSGW22-2 Motor ceiling fan stator winding machine

Specifications：

Features:

1. Motor winding machine is suitable for multi-pole motor stator coil winding. Manual loading and unloading, automatic clamping, winding and cutting.

2. Wire clamp wire cutting, the wire structure is compact, and the wire clamp wire cutting can be completed at one time;

3. PLC control, fault display;

4. The frame is made of thickened aluminum profile, and the table is made of cast iron to absorb vibration, even when it is wound at high speed, the vibration is very small.

5. Different stator and winding parameters can be quickly switched through HMI to adapt to different stator requirements.

6. Quickly change tooling;

7. The tooling and fixture parts adopt downward positioning method, which is stable in positioning and reliable in fastening.

8. The wire tightness is moderate, no damage, no break, etc.

9.All the parts for this machine are imported prats,such as:Japan Bearing (NSK、NTN),Japan BANDO belt ，U.S.A GATES belt ，Taiwan Ball screw (TBI)，Taiwan AC Drive and so on.

Advantages：

This ceiling fan coil winding machine Controlled by micro computer, it can do auto winding, auto array, auto indexing; array and indexing are controlled by stepping motor, winding is controlled by frequency converting motor, turn number could be accurated up to 0.1 round

Warranty period 1 year

The technicians are experienced
