Open Gear Type Medium Speed Winding Machine

Name: China Open Gear Type Medium Speed Winding Machine Suppliers, Manufacturers, Factory - Good Price - GREWIN
Brand: Grewin
SKU: 217058612

MODEL: GWLA-0319
Winding mode:Gear type
Finally complete the outside diameter:60-200
Minimum finished inside diameter:25
Maximum completion height:80
Suitable winding diameter range:0.5-1.6
Diameter of wire storage ring:250

Send Inquiry

Download

Description

SPECIFICATION：

Equipment model	GWLA-0319
Winding mode	Gear type
Finally complete the outside diameter	60-200
Minimum finished inside diameter	25
Maximum completion height	80
Suitable winding diameter range	0.5-1.6
Diameter of wire storage ring	250
Width of storage ring	3-8
Depth of storage ring	10/12/16
Maximum speed	230RPM
Operating voltage	220V/50Hz
Overall dimension	500x600x750

FEATURES :

1.Microcomputer program controller, simple operation.

2.Data input memory 50 specifications, each specification can be preset 20 running programs.

3.Double frequency conversion proportional drive, can choose automatic operation or pedal speed control operation.

4.Can be stepless speed regulation, according to different product process requirements set the appropriate winding speed.

APPLICATION:

Toroid Winding Machine is the best suited to toroidal inductor, toroidal transformers,toroidal current transformers,toroidal coil, toroid choke coil, power inductors,UPS inductor,converter inductor and heavy toroidal core etc.

EQUIPMENT FEATURES:

1. Gear type winding machine has the characteristics of large winding torque, high opening size of tooth ring/wire ring, large storage amount of wire and wide range of suitable winding diameter.

2. It is the most widely used winding machine. It is suitable for products with thick winding diameter, tidy wiring requirements and multi-stranded wire winding, such as small ring transformer secondary winding, high power ring transformer primary winding, large wire diameter inductance magnetic ring, etc.

3. Current transformer coil and adjustable resistance.

4. According to the overall size of the product, complete the internal diameter, turns and other parameters, calculate the length to be wound, choose the appropriate size of the model.

5. The same model can be replaced with different widths of the storage wire ring, in order to meet the different size of the product line storage and complete diameter, a wider range of application.

6. The jig can be adjusted in a wide range, the linear density can be adjusted quickly and the segmented linear density can be adjusted. It is especially suitable for winding transformer products with multiple windings.

7. Suitable for winding wire of various types, such as enamelled copper wire, enamelled aluminum wire, steel wire, nylon wire and resistance wire, can be used for coil processing ofvarious industry products.

PACKAGING:

Packaging Material: Carton/Wooden case with foam inside.

1.General package(Paper carton or plastic bag): For small euipped parts for Toroidal Transformer Winding Machine , Package it with form and pack paper to guarantee unbroken during the transport.

2.Wooden case package: For larger scale Toroidal Winding machine ,we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock.

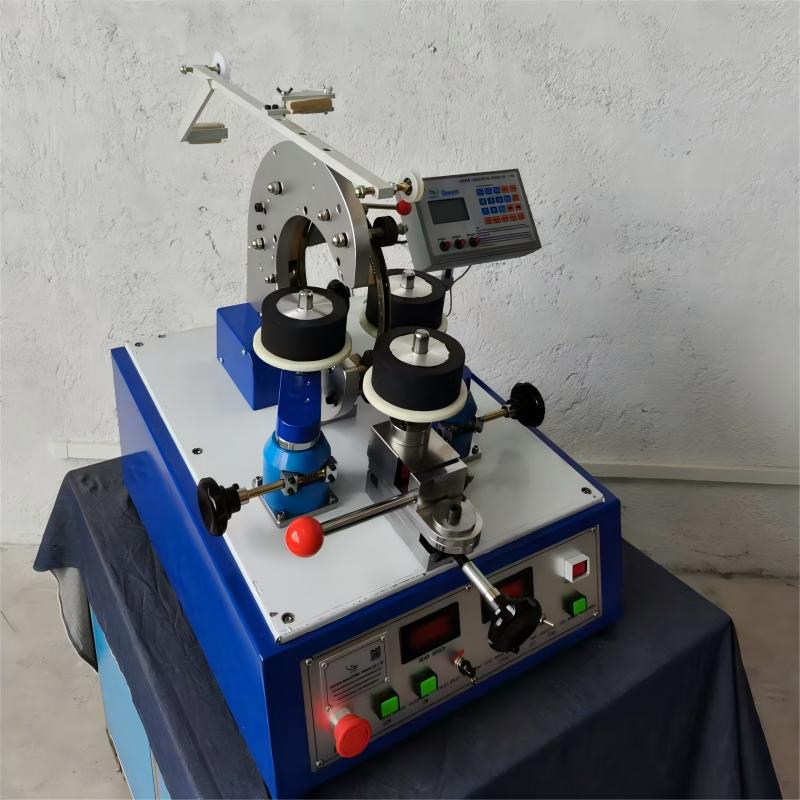

Open Gear Type Medium Speed Winding Machine 4

product-622-630

FACTORY:

We-GREWIN INDUSTRIAL GROUP is expert in winding machines lines for 28Years. Our Grewin have ISO9001:2015,CE approvals,Machines'Patents,"high-tech enterprises"by the government.

VIDEO：

Are you in search of an efficient and reliable solution for transformer winding? Look no further! Our Automatic Toroid Transformer Winding Machine is designed to revolutionize your winding process. This state-of-the-art equipment, also known as the China Automatic Toroid Winding Machine, is the ultimate answer to your winding needs.

KEY FEATURES:

Open Gear Type Design: Our machine boasts an open gear type design, ensuring smooth and precise winding operations. This innovative feature minimizes friction and maximizes the longevity of your equipment.

Medium Speed Performance: The Automatic Toroidal Machine offers medium-speed winding capabilities, striking the perfect balance between speed and precision. It is ideal for various winding applications, including Semi Automatic Transformer Winding and Power Transformer Winding.

Round Transformer Winding: Our machine specializes in Round Transformer Winding, ensuring that you achieve consistently round and reliable transformer coils every time. Say goodbye to irregularities and hello to quality winding results.

b2c4eb8fb31a4452de3004ca71470b21

Why Choose Our Winding Machine?

Efficiency: With this machine's automated capabilities, you'll experience a significant increase in production efficiency. It's perfect for high-volume production environments.

Precision: When it comes to winding transformers, precision is paramount. Our Automatic Toroid Transformer Winding Machine guarantees accurate and uniform winding, meeting the most stringent quality standards.

Versatility: Whether you require a Semi Automatic Transformer Winding Machine or a Power Transformer Winding Machine, our equipment is adaptable to your specific needs. Its versatility makes it suitable for a wide range of transformer winding applications.

Reliability: Count on our machine for consistent, reliable performance, minimizing downtime and ensuring smooth production processes.

In conclusion, our Open Gear Type Medium Speed Winding Machine, also known as the China Automatic Toroid Winding Machine, is your ticket to elevated winding efficiency, precision, and reliability. Whether you need a Round Transformer Winding Machine or a solution for other winding applications, our equipment has got you covered. Upgrade your transformer winding process with our cutting-edge technology today!
