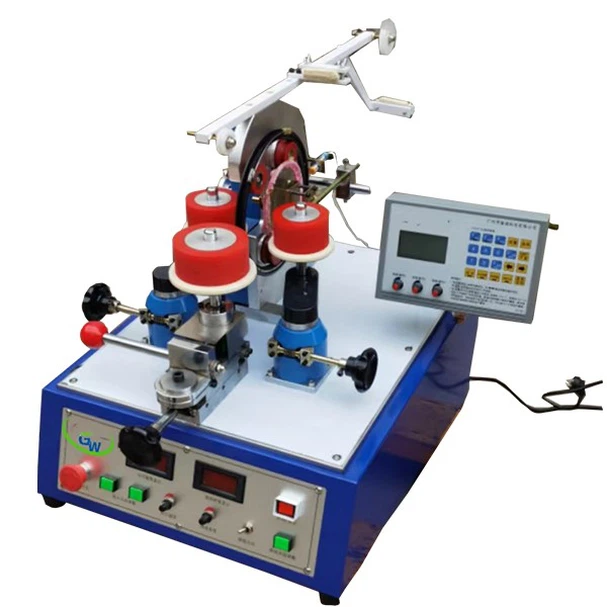

Automatic Winding Machine Copper

SPECIFICATION:Main technical parameters table: (Unit: mm)

Equipment model	GWLSM-H1819
Winding mode	Slider type
Finally complete the outside diameter	60/200
Minimum finished inside diameter	35
Maximum completion height	100
Suitable winding diameter range	0.35-0.75
Diameter of wire storage ring	230
Width of storage ring	9-15
Maximum speed	700 RPM
Operating voltage	220V/50HZ
Overall dimension	500x600x750
Weight	100KG



FEATURES：



1.Toroid Transformer Winding Machine are advanced,strongly built workhorses capable of winding light as well as heavy wire without insulation damage.

2.The open gap gear rack and hinged gap magazine of Toroid Transformer Winding Machine facilitate core change ,maximzing output.

3.Easily exchangeable magazines secure maximum flexbility.

4.Extremely powerful,maintenance free AC motors for main drive and core rotation.

5.High technical winding shuttle for winding by highest efficiency.

6.Toroid Transformer Winding Machine can accurately count length of loading by limited-switch.

7.Toroid Transformer Winding Machine can accurately count turns of winding and taping by photo-electricity sensor.





ADVANTAGES:



1.Stable machine performance

2.Communicate parameters in a timely and thoughtful manner

3.Wide range of application, Large range of Speed adjustment, wide range of the wire diameter, Multi-style of core, Brake tension adjustable, Good settlement for large outer diameter, small inner diameter, heavy wire coils.

4.High production efficiency, increase winding efficiency by adjustment of suitable brake tension,

5.Each wiring part guarantee no wire damage.

6.Parts highly optimized and universal for general use, Easy maintenance

7.Complete specifications and data



APPLICATION:



Toroid Winding Machine is the best suited to toroidal inductor, toroidal transformers,toroidal current transformers,toroidal coil, toroid choke coil, power inductors,UPS inductor,converter inductor and heavy toroidal core etc.



PRACTICAL APPLICATION :

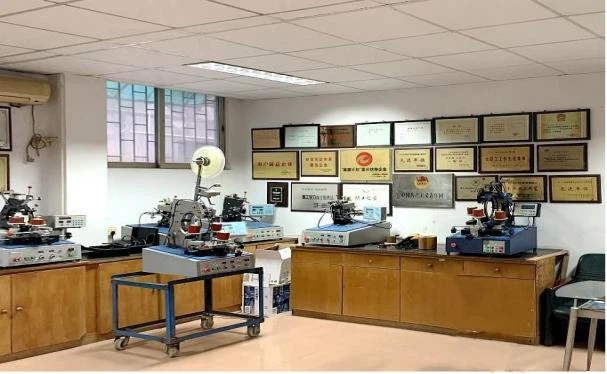

TRAINNING CUSTOMER TO OPERATE WINDING MACHNE :



1.All service engineers with 10 years experience are gotten special technology training, who can deal with various breakdown problem.

2.Guide the user to use accurately and how to maintain the product.Provide free consultation about production process technology of electronic products.

3.In order to guarantee the machine used normally, we'd have training on how to operate, use and maintain our product by English manual, video, guiding on line.





PACKAGING:







FACTORY:
