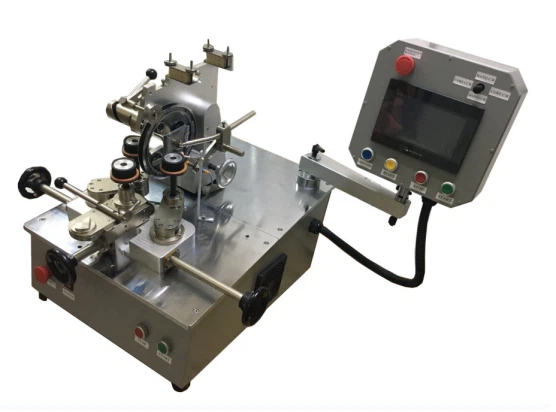

Stepper Motor Toroidal Winding Machine







Wire diameter	0.3-1.0mm
Minimum finish inner diameter	10mm
Maximum completion height	55mm
Maximum finish outer diameter	25-150mm
Max speed	1600rpm
Magazine diameter	150mm



Brief technical description:



Brand new PLC+touch screen control system, German manufacturing technology,

Servo motor + combined with proximity on/off counting to ensure hundreds of percent accurate laps and the highest idling speed of the machine head



The speed can reach 1600rpm; the stepper motor ensures beautiful wiring;

fully automatic/manual setting of the front and rear of the product

Rotation direction;

fully automatic/manual control of wire spacing;

fully automatic/manual addition and subtraction of winding speed;

The stepper motor toroidal winding machine is a piece of advanced equipment that plays a vital role in the manufacturing of various types of motors. It is essential for creating a precise and durable toroidal winding for stepper motors, making it a crucial device in the motor industry.



The stepper motor toroidal winding machine utilizes advanced technology to produce high-quality windings. It is equipped with sophisticated software that helps in programming and controlling the winding process. The machine's structure is designed to ensure that the wire is tightly wound around the core of the motor, making it more efficient and effective.



With the use of a CNC control system, the stepper motor toroidal winding machine is capable of winding wires with precision. The machine has the capability to wind up to 20 wires at a time, thus improving productivity and reducing manufacturing time. This is made possible by the use of servomotors, which offer precise control of motor speed, torque, and position.



The toroidal winding machine is compact and easy to operate, making it easy to integrate into the production process. It is designed to be user-friendly so that anyone can operate the machine with ease. Safety features have been incorporated into the machine to ensure the safety of the operator during the winding process.



The performance of the stepper motor toroidal winding machine is impressive. It reduces the amount of waste generated during the winding process, due to its ability to move the wire to specific lengths and stop precisely when needed. This reduces the number of defects in the final product, which leads to fewer returns and increased customer satisfaction.



The stepper motor that is produced using the toroidal winding machine is highly efficient and long-lasting, which makes it the preferred option in many applications. The toroidal winding process ensures that the motor is free from the effects of external electromagnetic fields, thus reducing the noise generated during operation.



In conclusion, the stepper motor toroidal winding machine is an excellent piece of equipment that has revolutionized the production process of stepper motors. Its advanced technology, precision, and efficiency have made it an indispensable device in the motor industry. Its ability to produce high-quality, durable, and efficient motors has made it a valuable asset to many manufacturing companies. With the continued advancement of technology, the stepper motor toroidal winding machine can only get better, thus making it the go-to machine for many motor manufacturers.
