Fully-Auto Slider Type Toroidal Core Winder

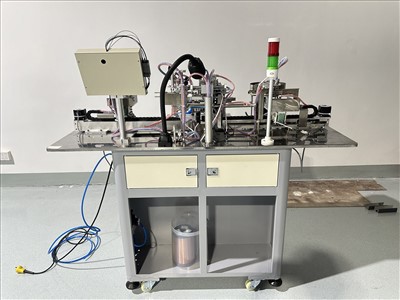

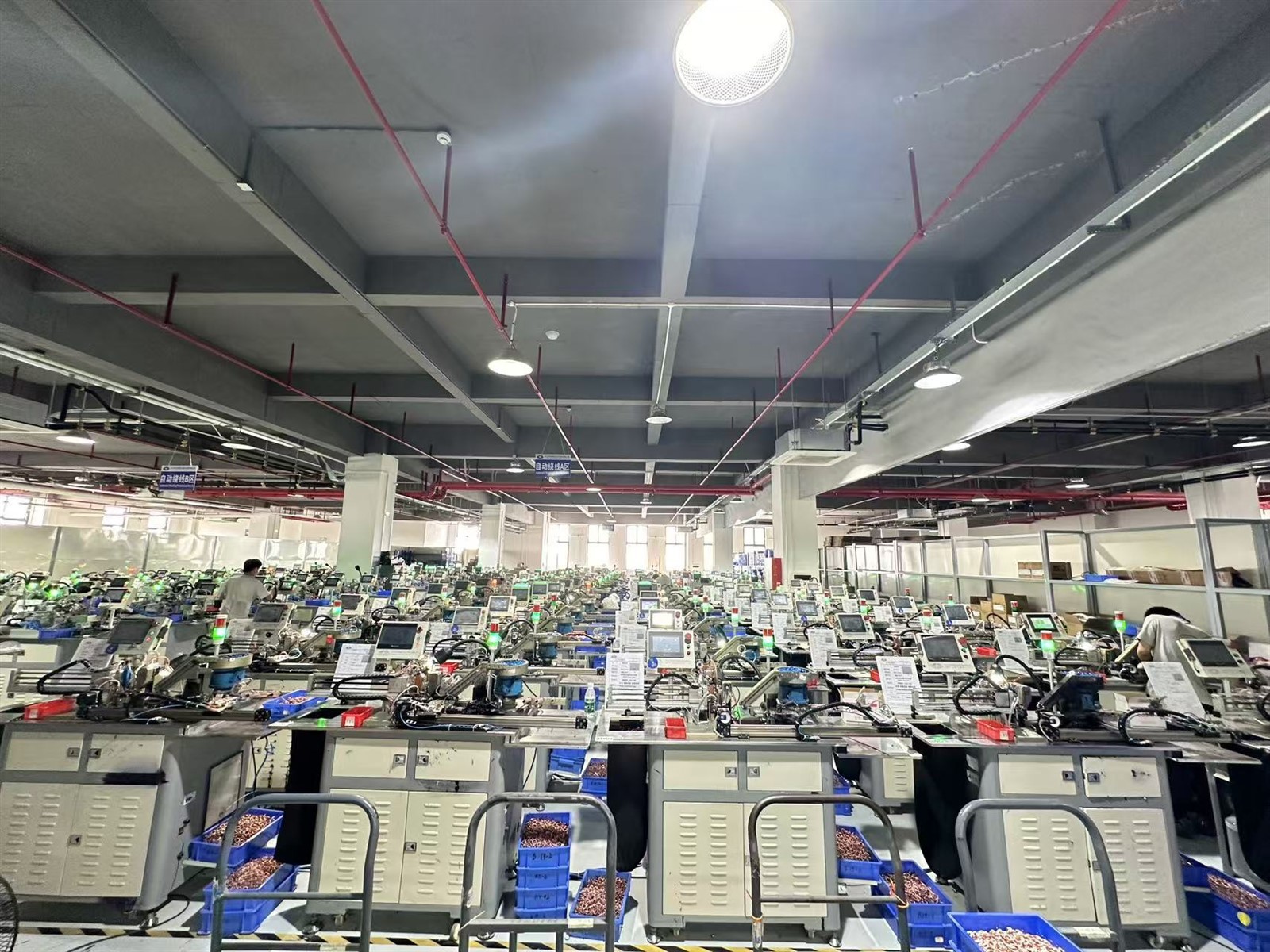

GWT-800A Full automatic slider type toroidal core winding machine





Machine head	GWT-800A-S4	GWT-800A-S5	GWT-800A-S6
Wire diameter	0.06-0.18mm	0.1-0.28mm	0.1-0.28mm
Minimum finish inner diameter	6mm	8mm	10mm
Core height	4-15mm	5-15mm	5-20mm
Core outer diameter	10-25mm	20-40mm	20-40mm
Magazine inner diameter	98mm	120mm	135mm
Magazine height (mm)	2.8, 3, 3.2, 3.5, 4, 4.2	3.5, 4, 4.5, 5, 5.5, 6, 7	4.5, 5, 5.5, 6, 6.5, 7
Machine size	110*60*132cm



MACHINE INTRODUCTION：

The GWT-800A is an up-to-date high-speed automatic winding machine for mini-type coils production on a large scale.

This model machine can assist you to finish some production which request of high output and high quality with low cost.

In order to solve down mini type core with fine wire and difficulty to operation, GWT-800A uses a new design for pay-off core automatic, pay-off wire automatic.

During production, it doesn't use manual operation. It decreases labor's strength. Meanwhile, it guarantees the quality of coils.

The user-friendly PLC software guides the operator through the programming with clear text commands.

It is easy to operate the machine.

It keeps the feature of easy operation of GWT-800A machine.

This control system uses Chinese and English versions. the guide roller uses a stepper motor driver, easy-to-adjust wire pitch, and precision control.





MACHINE FEATURES:

1. Independent loading wire speed and length control

2. Independent traverse speed and turn control.

3. Display language with Chinese and English, and touch panel operation.

4. Display current state and easy-to-check data.

5. Programming control stepper motor to drive core and run in any direction.

6. Controller memory some winding programs, each program edits different winding step sequences to fit different requests.

7. Set up the high-speed fiber optic sensor. It displays even numbers. Convenience to adjust and precise steady.

8. Control variable pitch, from sparse traverse to tiny traverse to get the result through programming.

9. Use a servo motor, loading wire precisely highly and speed steady. Loading and traverse speed switch steady.
